JDM Vehicle Catalog

Vehicle Specs

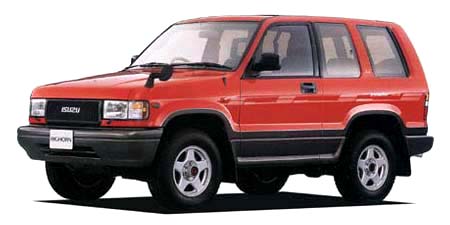

ISUZU BIGHORN IRMSCHER SHORT

ISUZU BIGHORN

UBS69DW · IRMSCHER SHORT

Description

Modification: IRMSCHER SHORT
Chassis ID: UBS69DW
Dates releasing: 1992.10~
Base price, ¥: Q-UBS69DW
Body size: 4230x1745x1835
Interior (LxWxH): 1685x1450x1190
Wheelbase: 2330
Track f/r: 1455mm/1460mm
Full weight, kg: 1910
Body type: SUV
Doors / seats: 3 door / 4

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ◯
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: ×
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: Option settings NO
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ✓

Engine

Model: 4JG2
Type: inline 4 cylinder OHVIC-turbo (Diesel)
Bore x stroke, mm: 95.4x107
Engine size, cc: 3059
Compression ratio: 20.0
Fuel injection: 分配型燃料噴射方
Max power, hp/rpm: 125ps(92kW)/3600rpm
Max torque, Nm/rpm: 28.0kg m(274.6N m)/2000rpm
Supercharger: IC turbo
Fuel tank, liters: 85 l
Fuel: Diesel
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Other
Front suspension: イルムシャーチューニング Double wishbone ト&#12540
Rear suspension: イルムシャーチューニング 4リンク Coil
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 245/70R16
Rear wheel: 245/70R16
Min turn diameter, m: 5.8

Gearbox

Number of stages: 4AT
Drive: Part-time 4WD
LSD: ◯

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.804	1.532	1.000	0.705	—	—	—	—	2.394

Available colors

black / Other blackwhite / Other whitegreenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilverRed / Other RedBlueDark cyanPearlGold
