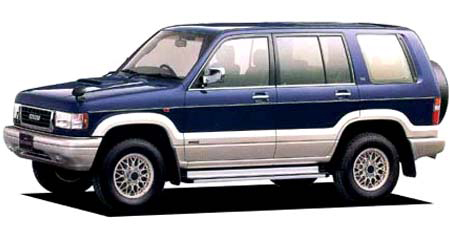

ISUZU BIGHORN XS PLAISIR II SPICIAL EDITION

ISUZU BIGHORN

UBS69GW · XS PLAISIR II SPICIAL EDITION

Description

Modification: XS PLAISIR II SPICIAL EDITION
Chassis ID: UBS69GW
Dates releasing: 1997.1~
Base price, ¥: KD-UBS69GW
Body size: 4660x1835x1840
Interior (LxWxH): 1770x1495x1245
Wheelbase: 2760
Track f/r: 1515mm/1520mm
Full weight, kg: 2060
Body type: SUV
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ◯
Sunroof: ◯
Alloy wheels: 16 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ◯

Engine

Model: 4JG2
Type: inline 4 cylinder OHVIC-turbo (Diesel)
Bore x stroke, mm: 95.4x107.0
Engine size, cc: 3059
Compression ratio: 20.0
Fuel injection: 電子制御燃料噴射方
Max power, hp/rpm: 135ps(99kW)/3600rpm
Max torque, Nm/rpm: 30.0kg m(294.2N m)/3600rpm
Supercharger: IC turbo
Fuel tank, liters: 85 l
Fuel: Diesel
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Other
Front suspension: Double wishbone トーションバースプリング type Independen
Rear suspension: 4リンク Coil spring type 車軸懸架
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 245/70R16
Rear wheel: 245/70R16
Min turn diameter, m: 5.8

Gearbox

Number of stages: 4AT
Drive: Part-time 4WD
LSD: ◯

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: 連装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

blackwhite / Other whitegreen / Other greenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlue / Other BlueDark cyanPearlGold
