JDM Vehicle Catalog

Vehicle Specs

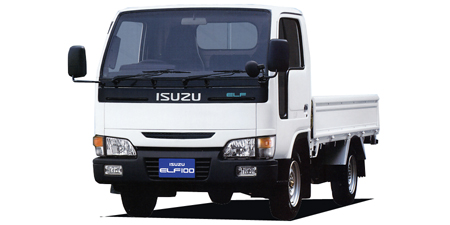

ISUZU ELF 100 BASE GRADE

ISUZU ELF 100

ASH4F23 · BASE GRADE

Description

Modification: BASE GRADE
Chassis ID: ASH4F23
Dates releasing: 2004.9~
Base price, ¥: TC-ASH4F23
Body size: 4690x1695x1965
Interior (LxWxH): ----x----x----
Wheelbase: 2515
Track f/r: 1410mm/1280mm
Full weight, kg: 1640
Body type: Truck
Doors / seats: 4 door / 6

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ×
Belts w/ holding: ×
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ×
Steering column length: ✓
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: ×
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: KA20DE
Type: inline 4 cylinder DOHC
Bore x stroke, mm: 86.0x86.0
Engine size, cc: 1998
Compression ratio: 9.5
Fuel injection: ----
Max power, hp/rpm: 120ps(88kW)/5200rpm
Max torque, Nm/rpm: 17.2kg m(169N m)/2800rpm
Supercharger: ×
Fuel tank, liters: 65 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Independent suspension
Rear suspension: ----
Front brake: disk
Rear brake: Drum
Front wheel: 175/80R15
Rear wheel: 155R12-8
Min turn diameter, m: 5.3

Gearbox

Number of stages: 4AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.785	1.545	1.000	0.694	—	—	—	—	2.272

Available colors

blackwhite / Crystal WhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlue / Other BlueDark cyan / Other Dark cyanPearlGold
