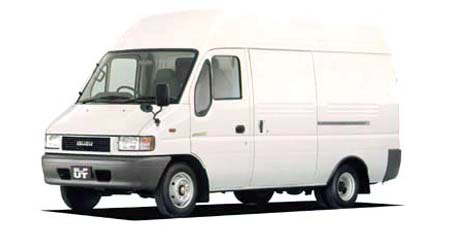

ISUZU ELF UT 150

ISUZU ELF UT

VHR69K · 150

Description

Modification: 150
Chassis ID: VHR69K
Dates releasing: 1999.8~
Base price, ¥: KK-VHR69K
Body size: 5285x1855x2520
Interior (LxWxH): ----x----x----
Wheelbase: 3230
Track f/r: 1540mm/1385mm
Full weight, kg: 2280
Body type: Cab-over van
Doors / seats: 4 door / 2

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ×
Child-seat fixation: ×
Safety planks: ×
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ×
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ◯
Sunroof: ×
Alloy wheels: ×
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 4JG2
Type: inline 4 cylinder OHV (Diesel)
Bore x stroke, mm: 95.4x107.0
Engine size, cc: 3059
Compression ratio: 20.1
Fuel injection: ----
Max power, hp/rpm: 94ps(69kW)/3600rpm
Max torque, Nm/rpm: 20.6kg m(202N m)/1800rpm
Supercharger: ×
Fuel tank, liters: 75 l
Fuel: Diesel
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: インデペンデントサスペンション
Rear suspension: リーフリジット
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 185/80R15
Rear wheel: 165R13-8
Min turn diameter, m: 5.6

Gearbox

Number of stages: 4AT
Drive: Mid-ship
LSD: ◯

Exterior equipment

Front fog lights: ◯
Rear fog lights: ◯
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

blackwhite / Other whitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlue / Other BlueDark cyanPearlGold
