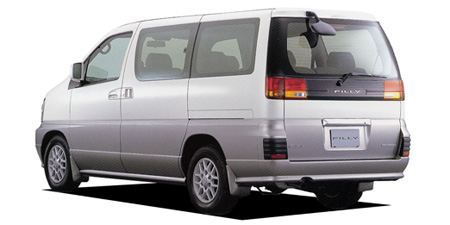

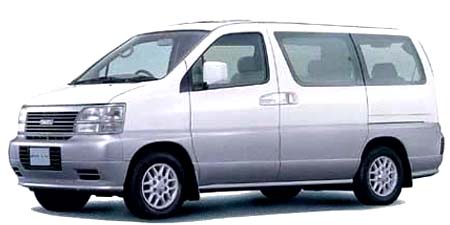

ISUZU FARGO FILLY E TYPE

ISUZU FARGO FILLY

JAVWE50 · E TYPE

Description

Modification: E TYPE
Chassis ID: JAVWE50
Dates releasing: 1997.7~
Base price, ¥: KD-JAVWE50
Body size: 4740x1775x1945
Interior (LxWxH): 3030x1645x1290
Wheelbase: 2900
Track f/r: 1510mm/1515mm
Full weight, kg: 2100
Body type: MV 1Box
Doors / seats: 4 door / 8

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: Option settings NO
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: QD32ETI
Type: inline 4 cylinder OHVIC-turbo (Diesel)
Bore x stroke, mm: 99.2x102.0
Engine size, cc: 3153
Compression ratio: 22.0
Fuel injection: EDI(電子制御燃料噴射装置)
Max power, hp/rpm: 150ps(110kW)/3600rpm
Max torque, Nm/rpm: 34.0kg m(333.4N m)/2000rpm
Supercharger: IC turbo
Fuel tank, liters: 76 l
Fuel: Diesel
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type
Rear suspension: コントロールロッド付5リンク Coil spring
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 215/65R 15 96S
Rear wheel: 215/65R 15 96S
Min turn diameter, m: 5.6

Gearbox

Number of stages: 4AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.785	1.545	1.000	0.694	—	—	—	—	2.272

Available colors

black / Other blackwhitegreenMaroon (brown)OliveNavy blue / Dark Blue (P)PurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlueDark cyanPearl / Other PearlGold
