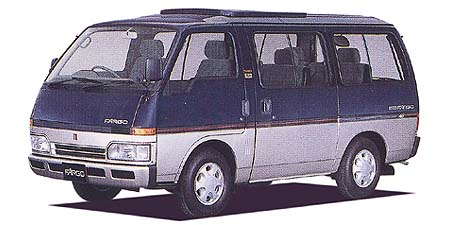

ISUZU FARGO WAGON LD

ISUZU FARGO WAGON

WFS51DW · LD

Description

Modification: LD
Chassis ID: WFS51DW
Dates releasing: 1990.1~
Base price, ¥: Q-WFS51DW
Body size: 4350x1690x1990
Interior (LxWxH): 3430x1520x1340
Wheelbase: 2350
Track f/r: 1405mm/1400mm
Full weight, kg: 1660
Body type: MV 1Box
Doors / seats: 4 door / 10

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ×
Child-seat fixation: ×
Safety planks: ×
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: ×
Power window: ×
Central switch: ×
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings YES
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 4FC1
Type: water cooling inline 4 cylinder OHCturbo (Diesel)
Bore x stroke, mm: ----x----
Engine size, cc: 1995
Compression ratio: 21.0
Fuel injection: 分配 type 燃料噴射ポンプ
Max power, hp/rpm: 82ps(60kW)/4500rpm
Max torque, Nm/rpm: 17.5kg m(171.6N m)/2500rpm
Supercharger: Turbo
Fuel tank, liters: 60 l
Fuel: Diesel
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Other
Front suspension: Double wishbone 型 Independent suspension
Rear suspension: 半楕円リーフスプリング
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 195SR14
Rear wheel: 195SR14
Min turn diameter, m: 5.2

Gearbox

Number of stages: 5MT
Drive: Part-time 4WD
LSD: ◯

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ◯

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.122	2.493	1.504	1.000	0.787	—	—	—	3.720

Available colors

blackwhite / Pure WhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearlGold
