JDM Vehicle Catalog

Vehicle Specs

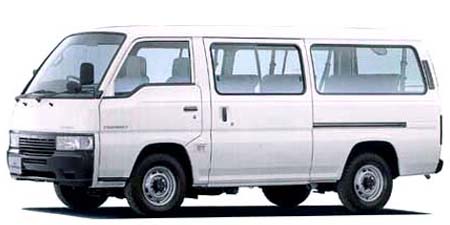

ISUZU FARGO WAGON LONG LD

ISUZU FARGO WAGON

JKRMGE24 · LONG LD

Description

Modification: LONG LD
Chassis ID: JKRMGE24
Dates releasing: 1997.6~
Base price, ¥: KD-JKRMGE24
Body size: 4690x1690x1990
Interior (LxWxH): 3685x1535x1345
Wheelbase: 2645
Track f/r: 1455mm/1405mm
Full weight, kg: 1890
Body type: MV 1Box
Doors / seats: 4 door / 10

Safe equipment

Driver's air bag: ◯
Front passenger air bag: ×
Side airbags: ×
ABS: ◯
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: TD27
Type: water cooling inline 4 cylinder OHV (Diesel)
Bore x stroke, mm: 96.0x92.0
Engine size, cc: 2663
Compression ratio: 22.2
Fuel injection: ボッシュ type 分配型噴射ポンプ
Max power, hp/rpm: 85ps(63kW)/4300rpm
Max torque, Nm/rpm: 18.0kg m(176.5N m)/2200rpm
Supercharger: ×
Fuel tank, liters: 65 l
Fuel: Diesel
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Other
Front suspension: Double wishbone
Rear suspension: リジットリーフ
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 195R14-6PRLT
Rear wheel: 195R14-6PRLT
Min turn diameter, m: 5.5

Gearbox

Number of stages: 5MT
Drive: Part-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ◯
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.985	2.246	1.415	1.000	0.820	—	—	—	3.657

Available colors

blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlueDark cyanPearlGold
