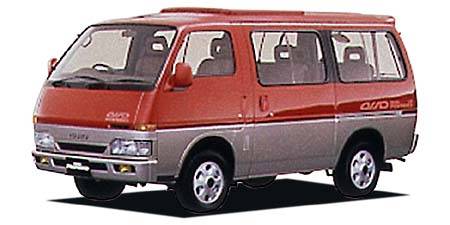

ISUZU FARGO WAGON LS

ISUZU FARGO WAGON

WFR62DW · LS

Description

Modification: LS
Chassis ID: WFR62DW
Dates releasing: 1993.8~
Base price, ¥: KD-WFR62DW
Body size: 4350x1690x1920
Interior (LxWxH): 3210x1495x1315
Wheelbase: 2350
Track f/r: 1430mm/1400mm
Full weight, kg: 1610
Body type: MV 1Box
Doors / seats: 4 door / 8

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: ×
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings YES
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ◯

Engine

Model: 4FG1-T
Type: water cooling inline 4 cylinder OHCturbo (Diesel)
Bore x stroke, mm: ----x----
Engine size, cc: 2380
Compression ratio: 20.1
Fuel injection: 分配 type 燃料噴射ポンプ
Max power, hp/rpm: 85ps(63kW)/4300rpm
Max torque, Nm/rpm: 17.5kg m(171.6N m)/2500rpm
Supercharger: Turbo
Fuel tank, liters: 60 l
Fuel: Diesel
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Other
Front suspension: Double wishbone 型 Independent suspension
Rear suspension: 半楕円リーフスプリング
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 195/70R14
Rear wheel: 195/70R14
Min turn diameter, m: 4.8

Gearbox

Number of stages: 4AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.826	1.493	1.000	0.688	—	—	—	—	2.703

Available colors

blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearlGold
