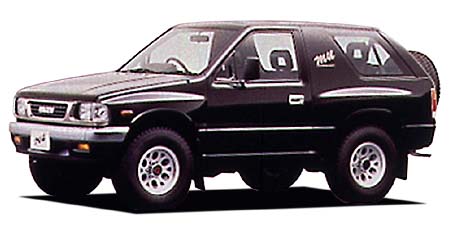

ISUZU MU METAL TOP XS

ISUZU MU

UCS55DWM · METAL TOP XS

Description

Modification: METAL TOP XS
Chassis ID: UCS55DWM
Dates releasing: 1991.9~
Base price, ¥: Q-UCS55DWM
Body size: 4135x1780x1675
Interior (LxWxH): 1885x1355x1140
Wheelbase: 2330
Track f/r: 1450mm/1460mm
Full weight, kg: 1720
Body type: SUV
Doors / seats: 3 door / 4

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: ×
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: 15 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 4JB1-T
Type: inline 4 cylinder OHCturbo (Diesel)
Bore x stroke, mm: 93.0x102.0
Engine size, cc: 2771
Compression ratio: 17.5
Fuel injection: 分配型燃料噴射ポンプ
Max power, hp/rpm: 110ps(81kW)/3600rpm
Max torque, Nm/rpm: 23.0kg m(225.6N m)/2300rpm
Supercharger: Turbo
Fuel tank, liters: 83 l
Fuel: Diesel
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Other
Front suspension: Double wishbone トーションバースプリング type Independen
Rear suspension: 半楕円リーフスプリング
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 10.5R15-6
Rear wheel: 10.5R15-6
Min turn diameter, m: 5.3

Gearbox

Number of stages: 4AT
Drive: Part-time 4WD
LSD: ◯

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.804	1.532	1.000	0.705	—	—	—	—	2.394

Available colors

blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearlGold
