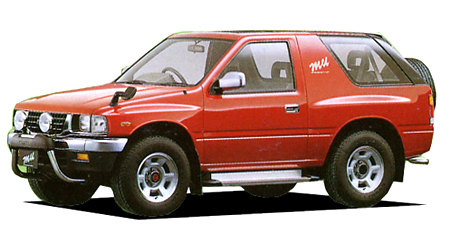

ISUZU MU S

ISUZU MU

UCS69DWM · S

Description

Modification: S
Chassis ID: UCS69DWM
Dates releasing: 1993.10~
Base price, ¥: KD-UCS69DWM
Body size: 4135x1780x1670
Interior (LxWxH): 1885x1355x1140
Wheelbase: 2330
Track f/r: 1460mm/1475mm
Full weight, kg: 1770
Body type: SUV
Doors / seats: 3 door / 4

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: ×
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings YES
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 4JG2
Type: inline 4 cylinder OHCturbo (Diesel)
Bore x stroke, mm: 95.4x107.0
Engine size, cc: 3059
Compression ratio: 20.0
Fuel injection: 分配型燃料噴射方
Max power, hp/rpm: 120ps(88kW)/3600rpm
Max torque, Nm/rpm: 27.5kg m(269.7N m)/2000rpm
Supercharger: Turbo
Fuel tank, liters: 83 l
Fuel: Diesel
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Other
Front suspension: Double wishbone トーションバースプリング type Independen
Rear suspension: 半楕円リーフスプリング
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 245/70R16
Rear wheel: 245/70R16
Min turn diameter, m: 5.0

Gearbox

Number of stages: 5MT
Drive: Part-time 4WD
LSD: ◯

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

black / Other blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRed / Other RedBlue / Other BlueDark cyanPearlGold
