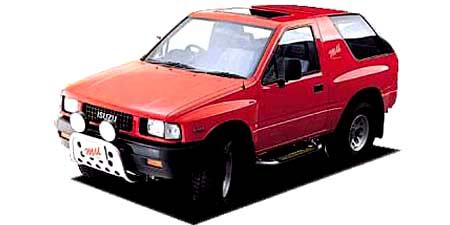

ISUZU MU SOFT TOP

ISUZU MU

UCS17DH · SOFT TOP

Description

Modification: SOFT TOP
Chassis ID: UCS17DH
Dates releasing: 1990.8~
Base price, ¥: T-UCS17DH
Body size: 4135x1780x1695
Interior (LxWxH): 1040x1515x960
Wheelbase: 2330
Track f/r: 1450mm/1460mm
Full weight, kg: 1460
Body type: SUV
Doors / seats: 2 door / 2

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ×
Child-seat fixation: ×
Safety planks: ×
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: ×
Power window: ×
Central switch: ×
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: 特殊形状
Alloy wheels: 15 inches standard
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 4ZE1
Type: water cooling inline 4 cylinder OHC
Bore x stroke, mm: 92.6x95.0
Engine size, cc: 2559
Compression ratio: 8.3
Fuel injection: 電子制御燃料噴射方
Max power, hp/rpm: 120ps(88kW)/5000rpm
Max torque, Nm/rpm: 20.0kg m(196.1N m)/2600rpm
Supercharger: ×
Fuel tank, liters: 83 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Other
Front suspension: Double wishbone トーションバースプリング type Independen
Rear suspension: 半楕円リーフスプリング
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 10.5R15-6
Rear wheel: 10.5R15-6
Min turn diameter, m: 5.3

Gearbox

Number of stages: 5MT
Drive: Part-time 4WD
LSD: ◯

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.767	2.314	1.404	1.000	0.809	—	—	—	3.873

Available colors

black / Other blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRed / Other RedBlue / Other BlueDark cyanPearlGold
