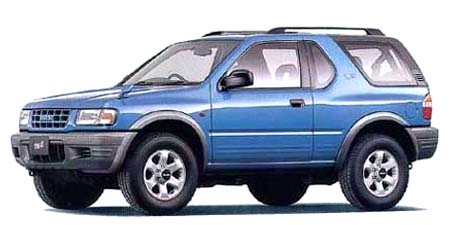

ISUZU MU TYPE S

ISUZU MU

UES73EW · TYPE S

Description

Modification: TYPE S
Chassis ID: UES73EW
Dates releasing: 1998.6~
Base price, ¥: KH-UES73EW
Body size: 4250x1785x1700
Interior (LxWxH): 1765x1390x1135
Wheelbase: 2460
Track f/r: 1515mm/1520mm
Full weight, kg: 1740
Body type: SUV
Doors / seats: 3 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: ×
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ツイン
Alloy wheels: Option settings NO
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 4JX1
Type: inline 4 cylinder DOHC 16-valves turbo (Diesel)
Bore x stroke, mm: 95.4x104.9
Engine size, cc: 2999
Compression ratio: 19.0
Fuel injection: 電子制御燃料噴射方
Max power, hp/rpm: 145ps(107kW)/4100rpm
Max torque, Nm/rpm: 30.0kg m(294.2N m)/2000rpm
Supercharger: Turbo
Fuel tank, liters: 67 l
Fuel: Diesel
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone トーションバースプリング type Independen
Rear suspension: 5リンク Coil spring type 車軸懸架
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 225/80R15
Rear wheel: 225/80R15
Min turn diameter, m: 5.1

Gearbox

Number of stages: 4AT
Drive: Part-time 4WD
LSD: ✓

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.804	1.532	1.000	0.705	—	—	—	—	2.394

Available colors

black / Other blackwhitegreen / Other greenMaroon (brown) / Other Maroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Bright silver metallicRed / Other RedBlue / Other BlueDark cyanPearlGold
