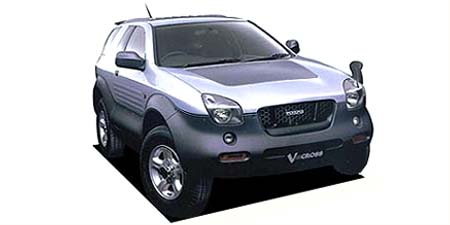

ISUZU VEHICROSS BASEGRADE

ISUZU VEHICROSS

UGS25DW · BASEGRADE

Description

Modification: BASEGRADE
Chassis ID: UGS25DW
Dates releasing: 1997.4~
Base price, ¥: E-UGS25DW
Body size: 4130x1790x1710
Interior (LxWxH): 1865x1440x1110
Wheelbase: 2330
Track f/r: 1515mm/1520mm
Full weight, kg: 1750
Body type: SUV
Doors / seats: 3 door / 4

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 16 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ✓

Engine

Model: 6VD1
Type: V-type 6 cylinder DOHC 24-valves
Bore x stroke, mm: 93.4x77.0
Engine size, cc: 3165
Compression ratio: 9.4
Fuel injection: 電子制御燃料噴射方
Max power, hp/rpm: 215ps(158kW)/5600rpm
Max torque, Nm/rpm: 29.0kg m(284.4N m)/3000rpm
Supercharger: ×
Fuel tank, liters: 85 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 12.8

Steering & suspension

Steering: Other
Front suspension: Double wishbone トーションスプリング type Independent suspension
Rear suspension: 4リンク Coil spring type 車軸懸架
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 245/70R16
Rear wheel: 245/70R16
Min turn diameter, m: 5.1

Gearbox

Number of stages: 4AT
Drive: Full-time 4WD
LSD: ✓

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.856	1.618	1.000	0.723	—	—	—	—	2.000

Available colors

black / Other blackwhitegreen / Other greenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearlGold
