JDM Vehicle Catalog

Vehicle Specs

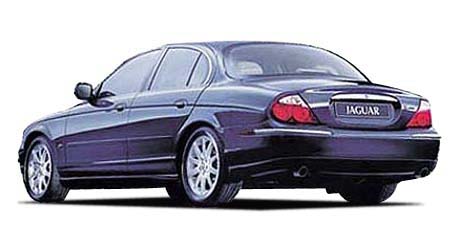

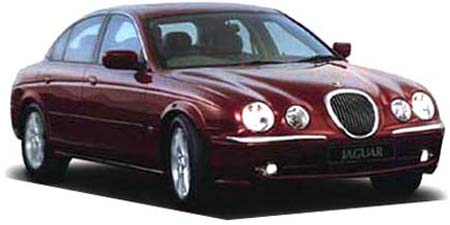

JAGUAR STYPE 3.0 V6

JAGUAR STYPE

J01FA · 3.0 V6

Description

Modification: 3.0 V6
Chassis ID: J01FA
Dates releasing: 1999.5~
Base price, ¥: GF-J01FA
Body size: 4880x1820x1445
Interior (LxWxH): ----x----x----
Wheelbase: 2910
Track f/r: 1535mm/1545mm
Full weight, kg: 1660
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ✓
Sunroof: ◯
Alloy wheels: 16 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: FC
Type: water cooling V-type 6 cylinder DOHC 24-valves
Bore x stroke, mm: 89.0x79.5
Engine size, cc: 2967
Compression ratio: 10.5
Fuel injection: 電子制御燃料噴射
Max power, hp/rpm: 243ps(179kW)/6800rpm
Max torque, Nm/rpm: 31.0kg m(304.0N m)/4500rpm
Supercharger: ×
Fuel tank, liters: 69 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 13.9

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone
Rear suspension: Double wishbone
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 225/55ZR16
Rear wheel: 225/55ZR16
Min turn diameter, m: 5.7

Gearbox

Number of stages: 5AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ◯
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.252	2.439	1.552	1.000	0.750	—	—	—	3.074

Available colors

black / Other blackwhite / Other whitegreen / Other greenMaroon (brown) / Other Maroon (brown)Olive / Other OliveNavy blue / Other Navy bluePurpleAshesYellowYellow-greenBlack (P) / Other Black (P)MagentaSilver / Other SilverRedBlue / Other BlueDark cyanPearlGold / Other Gold
