JDM Vehicle Catalog

Vehicle Specs

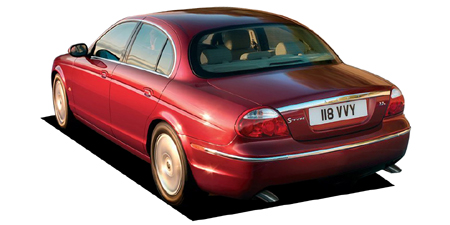

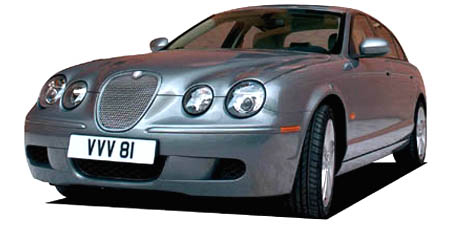

JAGUAR STYPE R

JAGUAR STYPE

J011D · R

Description

Modification: R
Chassis ID: J011D
Dates releasing: 2006.4~
Base price, ¥: CBA-J011D
Body size: 4905x1820x1445
Interior (LxWxH): ----x----x----
Wheelbase: 2910
Track f/r: 1540mm/1545mm
Full weight, kg: 1800
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: A.R.T.S.(コンピュータ制御包括的乗員安全システム) DSC(ダイナミックスタビリ&#12486

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: 18 inches standard
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 1B
Type: water cooling V-type 8 cylinder DOHCSチャー&#1
Bore x stroke, mm: 86.0x90.3
Engine size, cc: 4196
Compression ratio: 9.1
Fuel injection: 電子制御燃料噴射
Max power, hp/rpm: 406ps(298kW)/6100rpm
Max torque, Nm/rpm: 56.4kg m(553N m)/3500rpm
Supercharger: S charger
Fuel tank, liters: 69 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 15.1

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone
Rear suspension: Double wishbone
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 245/40ZR18
Rear wheel: 275/35ZR18
Min turn diameter, m: 5.4

Gearbox

Number of stages: 6AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ✓
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ×

Navigation & sound

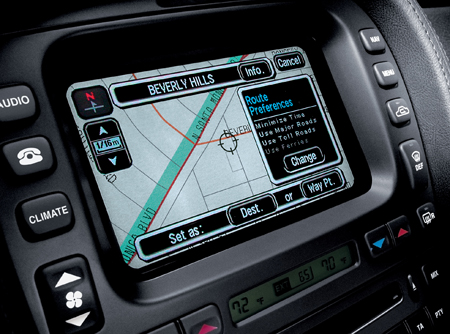

Navigation: ✓
Navigation device: DVD
Audio: AM/FM radio with MD player
CD player: 連装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.171	2.340	1.521	1.143	0.867	0.691	—	—	3.403

Available colors

black / Other blackwhite / Other whitegreen / Other greenMaroon (brown)OliveNavy blue / Other Navy bluePurple / Other PurpleAshes / Other AshesYellowYellow-greenBlack (P) / Other Black (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearlGold / Other Gold
