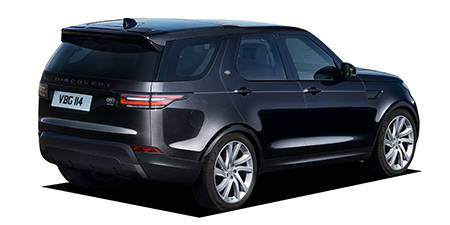

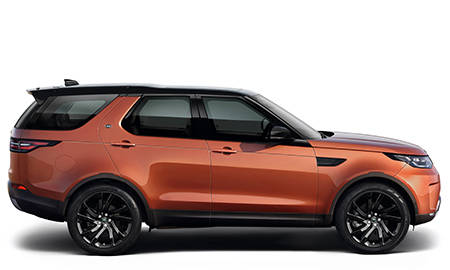

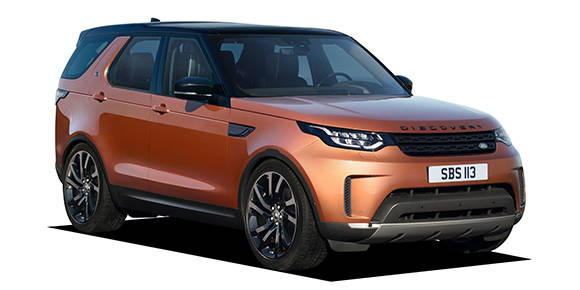

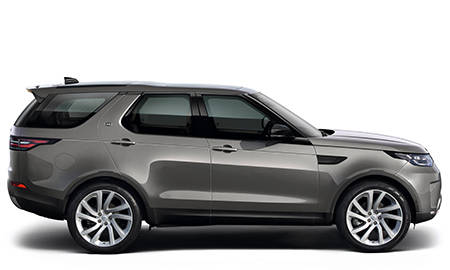

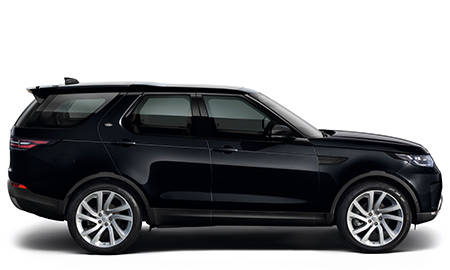

LAND ROVER DISCOVERY FIRST EDITION

LAND ROVER DISCOVERY

LR3VA · FIRST EDITION

Description

Modification: FIRST EDITION
Chassis ID: LR3VA
Dates releasing: 2017.5~
Base price, ¥: ABA-LR3VA
Body size: 4970x2000x1895
Interior (LxWxH): ----x----x----
Wheelbase: 2925
Track f/r: 1690mm/1685mm
Full weight, kg: 2440
Body type: SUV
Doors / seats: 5 door / 7

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: DSC(ダイナミックスタビリティコントロール) CBC(コーナーブレーキコントロ&

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓

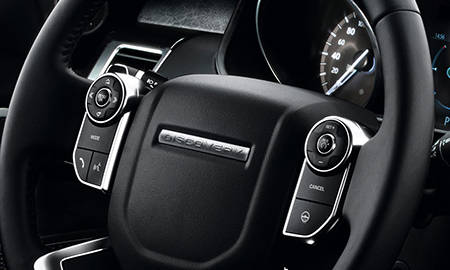

Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ×
Sunroof: 特殊形状
Alloy wheels: 21 inches standard
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ✓

Engine

Model: 306PS
Type: water cooling V-type 6 cylinder DOHCSチャー&#1
Bore x stroke, mm: 84.5x89.0
Engine size, cc: 2994
Compression ratio: ----
Fuel injection: 電子制御燃料噴射装置
Max power, hp/rpm: 340ps(250kW)/6500rpm
Max torque, Nm/rpm: 45.9kg m(450N m)/3500~5000rpm
Supercharger: S charger
Fuel tank, liters: 90 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: クロスリンク電子制御エアサスペン
Rear suspension: クロスリンク電子制御エアサスペン
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 275/45R21
Rear wheel: 275/45R21
Min turn diameter, m: 12.3

Gearbox

Number of stages: 8AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ✓
Navigation device: メモ
Audio: It is not
CD player: 連装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.714	3.143	2.106	1.667	1.285	1.000	0.839	0.667	3.295

Available colors

black / Other blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlueDark cyanPearlGold / Other Gold
