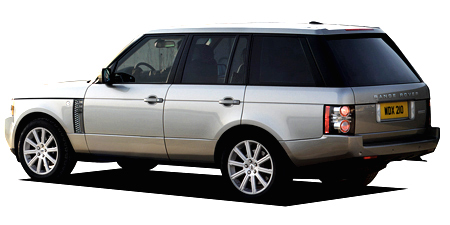

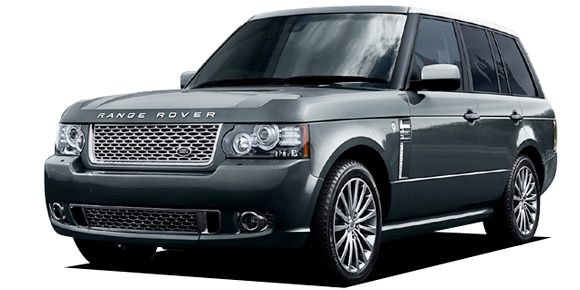

LAND ROVER RANGE ROVER VOGUE 5.0 V8 SUPERCHARGED

LAND ROVER RANGE ROVER VOGUE

LM5S · 5.0 V8 SUPERCHARGED

Description

Modification: 5.0 V8 SUPERCHARGED
Chassis ID: LM5S
Dates releasing: 2011.1~
Base price, ¥: ABA-LM5S
Body size: 4970x1955x1880
Interior (LxWxH): ----x----x----
Wheelbase: 2880
Track f/r: 1620mm/1615mm
Full weight, kg: 2630
Body type: SUV
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓

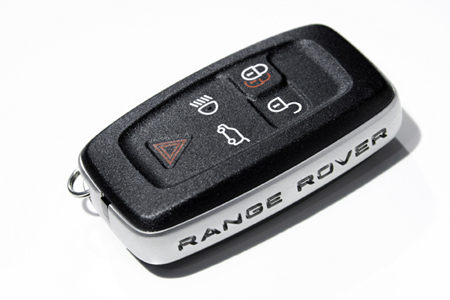

Anti-theft device: ✓
Additional equipment: DSC(ダイナミックスタビリティコントロール) CBC(コーナーブレーキコントロ&

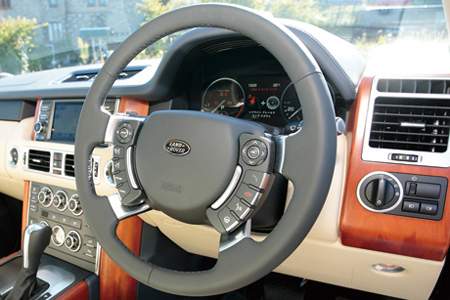

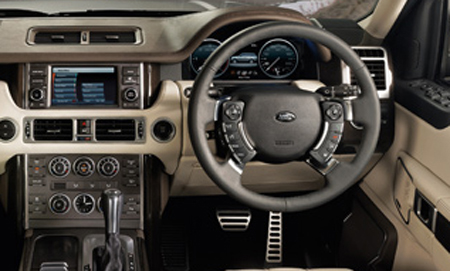

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓

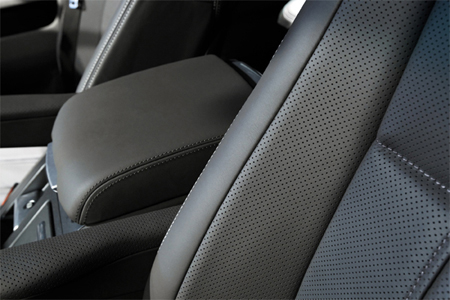

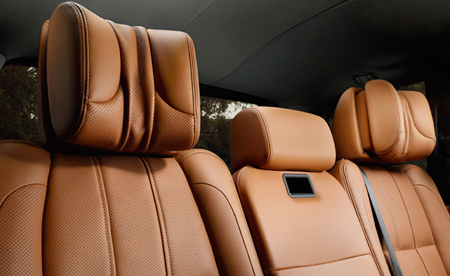

Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ◯
Sunroof: シングル
Alloy wheels: 20 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ✓

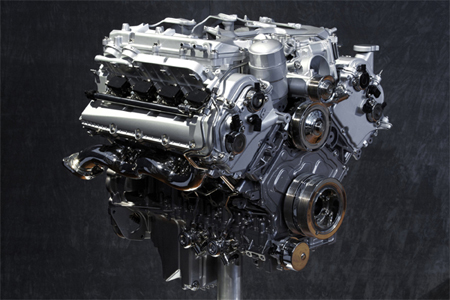

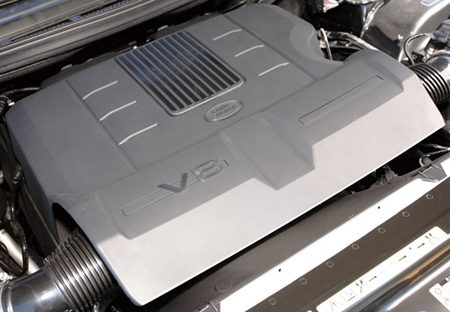

Engine

Model: 508PS
Type: water cooling V-type 8 cylinder DOHCSチャー&#1
Bore x stroke, mm: 92.5x93.0
Engine size, cc: 4999
Compression ratio: 9.5
Fuel injection: 電子制御燃料噴射装置
Max power, hp/rpm: 510ps(375kW)/6000~6500rpm
Max torque, Nm/rpm: 46.1kg m(625N m)/2500~5500rpm
Supercharger: S charger
Fuel tank, liters: 105 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 18.1

Steering & suspension

Steering: Power assist equipped rack&pinion

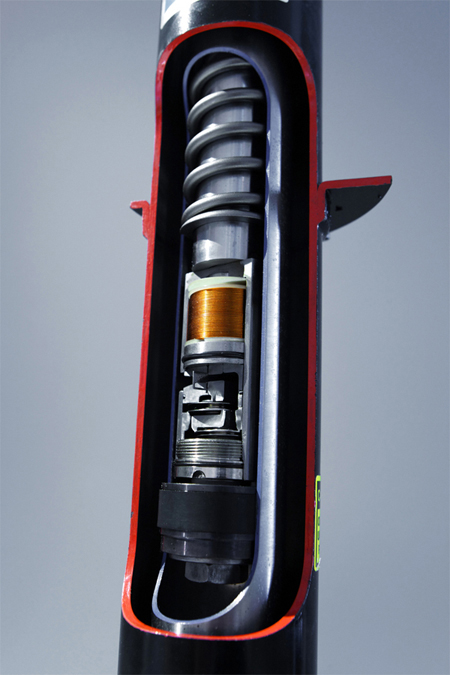

Front suspension: クロスリンク電子制御エアサスペン
Rear suspension: クロスリンク電子制御エアサスペン
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 255/50
Rear wheel: 255/50
Min turn diameter, m: 5.7

Gearbox

Number of stages: 6AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

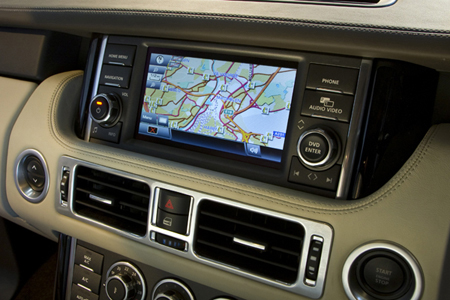

Navigation: ✓
Navigation device: HDD
Audio: AM/FMラジオ
CD player: 連装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.171	2.340	1.521	1.143	0.867	0.691	—	—	3.403

Available colors

black / Other blackwhite / Other whitegreen / Other greenMaroon (brown) / Other Maroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlueDark cyanPearlGold / Other Gold
