LEXUS CT200H Trim

LEXUS CT200H

ZWA10 · —

Description

Modification: —
Chassis ID: ZWA10
Dates releasing: 2011.1~
Base price, ¥: DAA-ZWA10
Body size: 4320x1765x1450
Interior (LxWxH): 1765x1470x1135
Wheelbase: 2600
Track f/r: 1535mm/1530mm
Full weight, kg: 1380
Body type: Hatch
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: S-VSC(ステアリング協調車両安定性制御システム)

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ◯

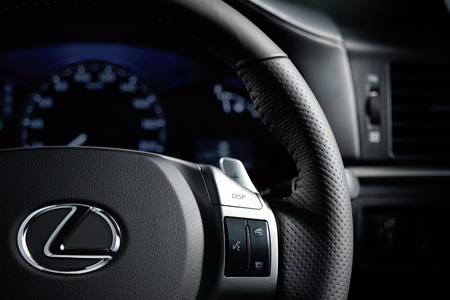

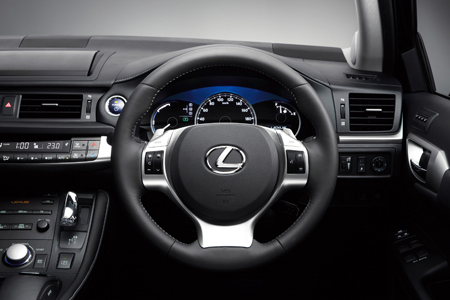

Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×

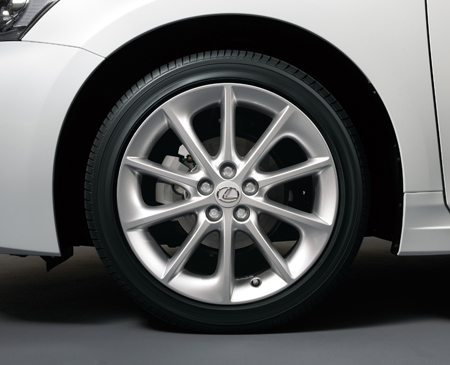

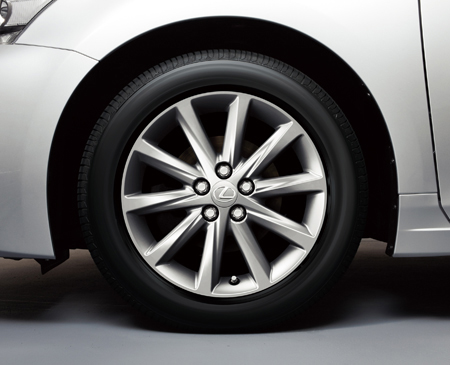

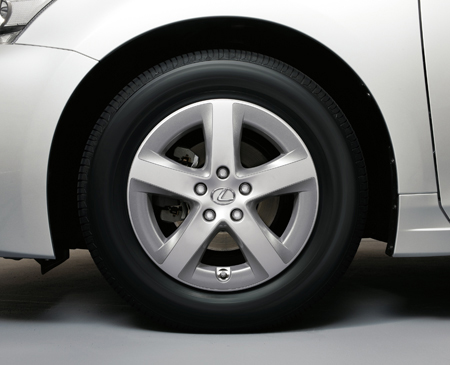

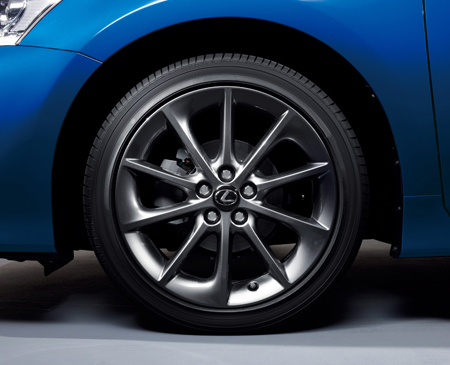

Alloy wheels: 15 inches standard

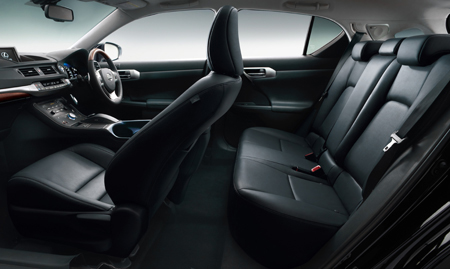

Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 2ZR-FXE
Type: inline 4 cylinder DOHC+
Bore x stroke, mm: 80.5x88.3
Engine size, cc: 1797
Compression ratio: 13.0
Fuel injection: Electronically controlled fuel injection system
Max power, hp/rpm: 99ps(73kW)/5200rpm
Max torque, Nm/rpm: 14.5kg m(142N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 45 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 2.9

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut (stabilizer attaching)
Rear suspension: Double wishbone (stabilizer attaching)
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 195/65R15 91S
Rear wheel: 195/65R15 91S
Min turn diameter, m: 5.0

Gearbox

Number of stages: CVT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ✓
Navigation device: HDD
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

black / Other blackwhitegreenMaroon (brown) / Fire Agate PearlOliveNavy bluePurpleAshesYellow / Other YellowYellow-greenBlack (P) / Other Black (P)MagentaSilver / Silver metallicRed / Red mica crystal shineBlue / Other BlueDark cyanPearl / White Pearl Crystal ShineGold
