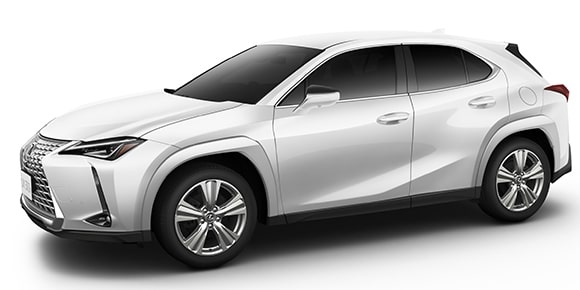

LEXUS UX300H GRACEFUL EXPLORER

LEXUS UX300H

MZAH16 · GRACEFUL EXPLORER

Description

Modification: GRACEFUL EXPLORER
Chassis ID: MZAH16
Dates releasing: 2024.10~
Base price, ¥: 6AA-MZAH16
Body size: 4495x1840x1540
Interior (LxWxH): 1830x1520x1170
Wheelbase: 2640
Track f/r: 1550mm/1550mm
Full weight, kg: 1600
Body type: SUV
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: VSC

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ×
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ×
Sunroof: ◯

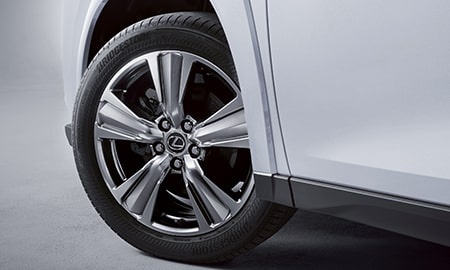

Alloy wheels: 18 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: M20A-FXS
Type: inline 4 cylinder +
Bore x stroke, mm: 80.5x97.6
Engine size, cc: 1986
Compression ratio: ----
Fuel injection: 筒内直接+ポート燃料噴射装置(D-4S)
Max power, hp/rpm: 152ps(112kW)/6000rpm
Max torque, Nm/rpm: 19.2kg m(188N m)/4400~5200rpm
Supercharger: ×
Fuel tank, liters: 43 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut (stabilizer attaching)
Rear suspension: Double wishbone (stabilizer attaching)
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 225/50RF18
Rear wheel: 225/50RF18
Min turn diameter, m: 5.2

Gearbox

Number of stages: CVT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ◯
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ×

Navigation & sound

Navigation: ✓
Navigation device: メモ
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

black / Other blackwhite / Sonic QuartzgreenMaroon (brown)Olive / Other OliveNavy bluePurpleAshes / Sonic chromeYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlueDark cyanPearlGold
