LOTUS ELISE R

LOTUS ELISE

1117 · R

Description

Modification: R
Chassis ID: 1117
Dates releasing: 2010.6~
Base price, ¥: ABA-1117
Body size: 3800x1720x1130
Interior (LxWxH): ----x----x----
Wheelbase: 2300
Track f/r: 1455mm/1505mm
Full weight, kg: 900
Body type: Open
Doors / seats: 2 door / 2

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ◯
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ×
Child-seat fixation: ×
Safety planks: ×
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ✓
Additional equipment: ×

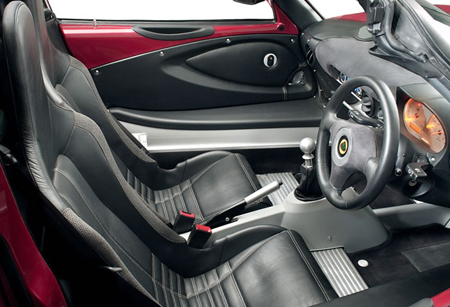

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×

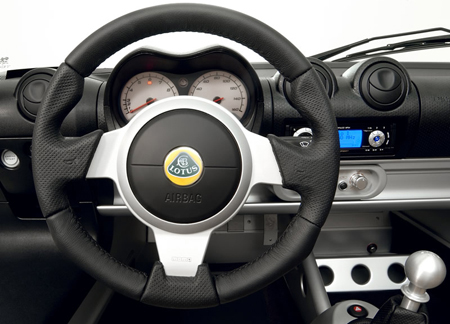

Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×

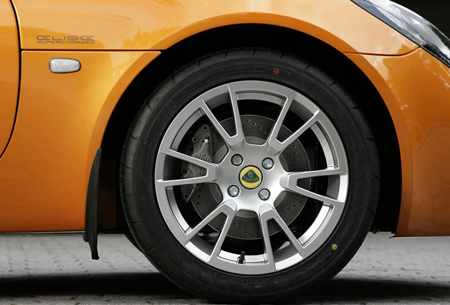

Alloy wheels: 17 inches standard
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

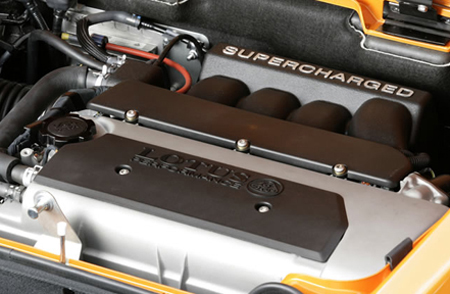

Engine

Model: 2ZZ-GE
Type: inline 4 cylinder DOHC
Bore x stroke, mm: 82.0x85.0
Engine size, cc: 1795
Compression ratio: 11.5
Fuel injection: ロータスコントロール電子制御
Max power, hp/rpm: 192ps(141kW)/7800rpm
Max torque, Nm/rpm: 18.5kg m(181N m)/6800rpm
Supercharger: ×
Fuel tank, liters: 40 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone
Rear suspension: Double wishbone
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 175/55 ZR16
Rear wheel: 225/45 ZR17
Min turn diameter, m: ----

Gearbox

Number of stages: 6MT
Drive: Mid-ship
LSD: ◯

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

black / Other blackwhite / Other whitegreen / Other greenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellow / Other YellowYellow-green / Other Yellow-greenBlack (P) / Other Black (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyan / Other Dark cyanPearlGold / Other Gold
