JDM Vehicle Catalog

Vehicle Specs

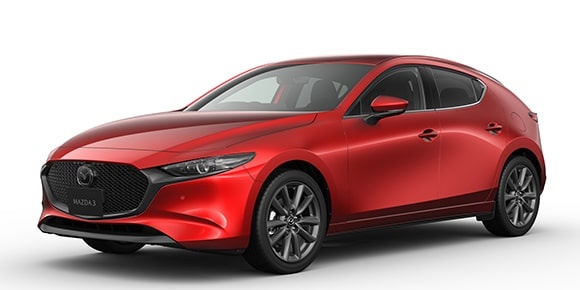

MAZDA 3 FASTBACK 20S TOURING

MAZDA 3 FASTBACK

BPFJ3R · 20S TOURING

Description

Modification: 20S TOURING
Chassis ID: BPFJ3R
Dates releasing: 2024.8~
Base price, ¥: 5AA-BPFJ3R
Body size: 4460x1795x1440
Interior (LxWxH): 1820x1490x1160
Wheelbase: 2725
Track f/r: 1570mm/1580mm
Full weight, kg: 1360
Body type: Hatch
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: ダイナミックスタビリティコントロールシステム[横滑り防止機構](DSC)

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 18 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: PE-VPH
Type: water cooling inline 4 cylinder DOHC 16-valves +
Bore x stroke, mm: 83.5x91.2
Engine size, cc: 1997
Compression ratio: 13.0
Fuel injection: 筒内直接噴射(DI)
Max power, hp/rpm: 156ps(115kW)/6000rpm
Max torque, Nm/rpm: 20.3kg m(199N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 51 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 215/45R18
Rear wheel: 215/45R18
Min turn diameter, m: 5.3

Gearbox

Number of stages: 6MT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.363	1.947	1.300	1.029	0.837	0.680	—	—	3.385

Available colors

black / Jet black micawhitegreenMaroon (brown)Olive / Other OliveNavy blue / Deep crystal blue micaPurpleAshes / polymetal gray metallic / Machine Gray Premium MetallicYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Soul Red Crystal MetallicBlueDark cyanPearl / Snowflake White Pearl MicaGold / Other Gold
