JDM Vehicle Catalog

Vehicle Specs

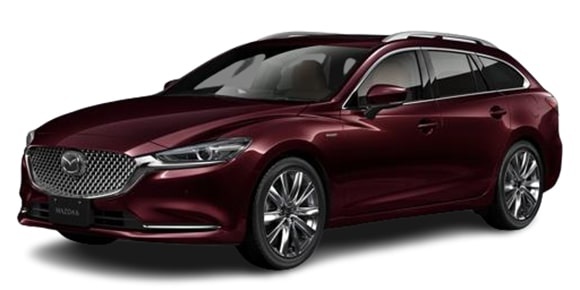

MAZDA 6 WAGON XD 20TH ANNIVERSARY EDITION

MAZDA 6 WAGON

GJ2FW · XD 20TH ANNIVERSARY EDITION

Description

Modification: XD 20TH ANNIVERSARY EDITION
Chassis ID: GJ2FW
Dates releasing: 2022.12~
Base price, ¥: 3DA-GJ2FW
Body size: 4805x1840x1480
Interior (LxWxH): 1930x1550x1170
Wheelbase: 2750
Track f/r: 1595mm/1585mm
Full weight, kg: 1630
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: ダイナミックスタビリティコントロールシステム[横滑り防止機構](DSC)

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ×
Sunroof: シングル
Alloy wheels: 19 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: SH-VPTR
Type: water cooling inline 4 cylinder DOHC 16-valves turbo (Diesel)
Bore x stroke, mm: 86.0x94.2
Engine size, cc: 2188
Compression ratio: 14.4
Fuel injection: 電子 type (コモンレール)
Max power, hp/rpm: 200ps(147kW)/4000rpm
Max torque, Nm/rpm: 45.9kg m(450N m)/2000rpm
Supercharger: Turbo
Fuel tank, liters: 62 l
Fuel: Diesel
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type
Rear suspension: Multi-link
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 225/45R19 92W
Rear wheel: 225/45R19 92W
Min turn diameter, m: 5.5

Gearbox

Number of stages: 6AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.487	1.992	1.449	1.000	0.707	0.600	—	—	3.990

Available colors

blackwhitegreenMaroon (brown) / Other Maroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlueDark cyanPearlGold
