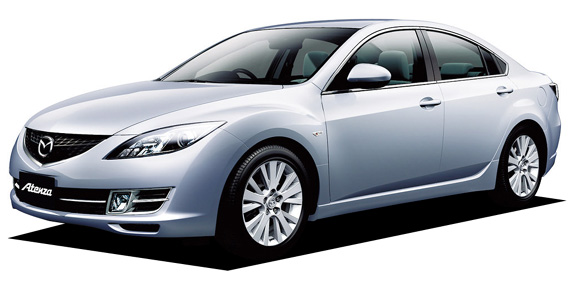

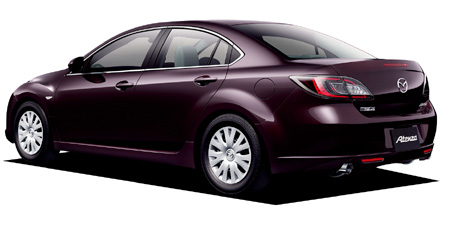

MAZDA ATENZA SEDAN 20E

MAZDA ATENZA SEDAN

GHEFP · 20E

Description

Modification: 20E
Chassis ID: GHEFP
Dates releasing: 2008.1~
Base price, ¥: DBA-GHEFP
Body size: 4735x1795x1440
Interior (LxWxH): 2015x1495x1190
Wheelbase: 2725
Track f/r: 1570mm/1570mm
Full weight, kg: 1400
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ◯
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓

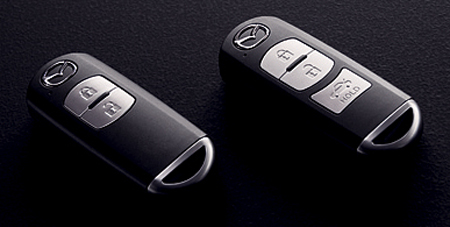

Anti-theft device: ✓
Additional equipment: ×

Comfort

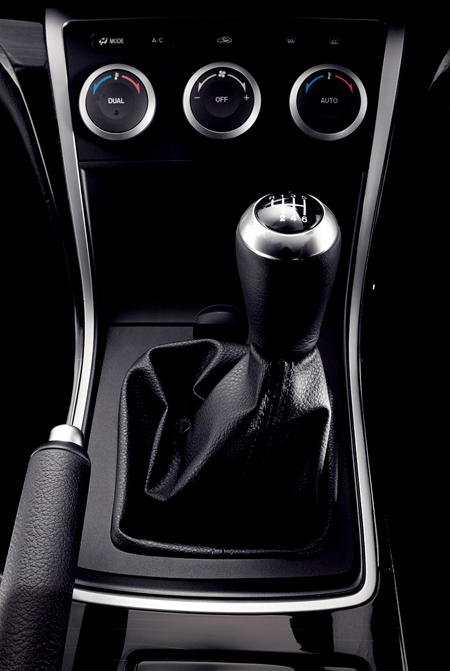

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings YES

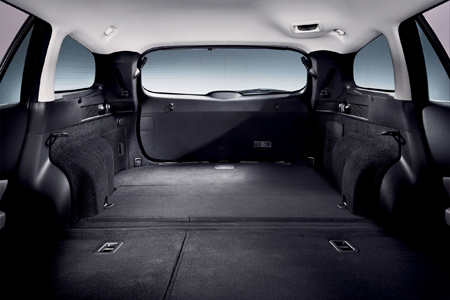

Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ◯

Engine

Model: LF-VE
Type: water cooling inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 87.5x83.1
Engine size, cc: 1998
Compression ratio: 10.0
Fuel injection: EGI(電子制御燃料噴射)
Max power, hp/rpm: 150ps(110kW)/6500rpm
Max torque, Nm/rpm: 18.6kg m(182N m)/4500rpm
Supercharger: ×
Fuel tank, liters: 64 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 7

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone
Rear suspension: Multi-link
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 195/65R16 92V
Rear wheel: 195/65R16 92V
Min turn diameter, m: 5.4

Gearbox

Number of stages: 5AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ◯
Extra front lights: ×
Spoilers (f / r): × / ◯
Wiper: ×

Navigation & sound

Navigation: ◯
Navigation device: HDD

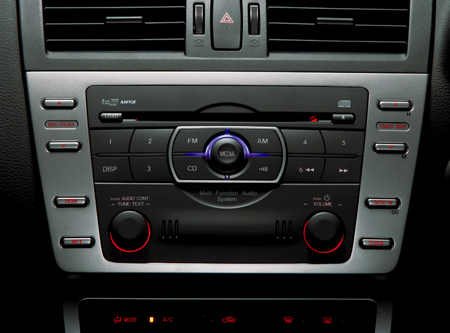

Audio: AM/FMラジオ
CD player: 連装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.620	1.925	1.285	0.933	0.692	—	—	—	3.405

Available colors

black / Other blackwhitegreenMaroon (brown)OliveNavy bluePurple / Other PurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlue / Other BlueDark cyanPearl / Other PearlGold
