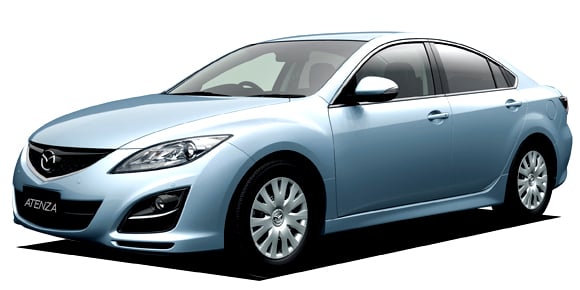

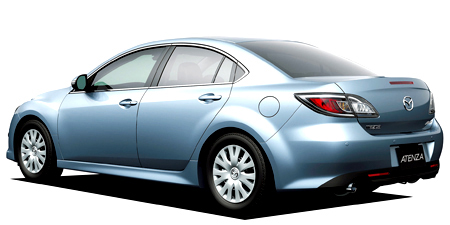

MAZDA ATENZA SEDAN 20S

MAZDA ATENZA SEDAN

GHEFP · 20S

Description

Modification: 20S
Chassis ID: GHEFP
Dates releasing: 2010.1~
Base price, ¥: DBA-GHEFP
Body size: 4735x1795x1440
Interior (LxWxH): 2015x1495x1190
Wheelbase: 2725
Track f/r: 1560mm/1560mm
Full weight, kg: 1400
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 16 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: LF-VD
Type: water cooling inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 87.5x83.1
Engine size, cc: 1998
Compression ratio: 11.2
Fuel injection: 筒内直接噴射(DI)
Max power, hp/rpm: 153ps(112kW)/6200rpm
Max torque, Nm/rpm: 19.3kg m(189N m)/4500rpm
Supercharger: ×
Fuel tank, liters: 64 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 6.7

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone
Rear suspension: Multi-link
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 205/60R16 92V
Rear wheel: 205/60R16 92V
Min turn diameter, m: 5.4

Gearbox

Number of stages: 5AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): ✓ / ×
Wiper: ×

Navigation & sound

Navigation: ◯
Navigation device: HDD
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.620	1.925	1.285	0.933	0.692	—	—	—	3.405

Available colors

black / black micawhitegreenMaroon (brown) / Other Maroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P) / Other Black (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearl / Other PearlGold
