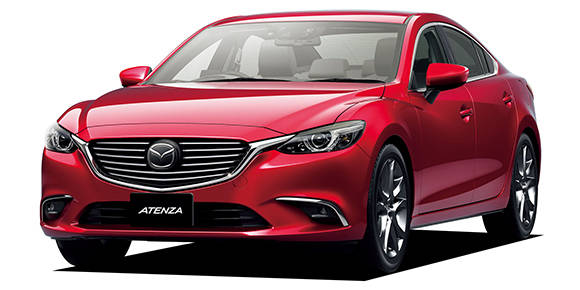

MAZDA ATENZA SEDAN 20S PROACTIVE

MAZDA ATENZA SEDAN

GJEFP · 20S PROACTIVE

Description

Modification: 20S PROACTIVE
Chassis ID: GJEFP
Dates releasing: 2016.8~
Base price, ¥: DBA-GJEFP
Body size: 4865x1840x1450
Interior (LxWxH): 1960x1550x1170
Wheelbase: 2830
Track f/r: 1585mm/1575mm
Full weight, kg: 1450
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: ダイナミックスタビリティコントロールシステム[横滑り防止機構](DSC)

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ◯
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 17 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: PE-VPR
Type: water cooling inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 83.5x91.2
Engine size, cc: 1997
Compression ratio: 13.0
Fuel injection: 筒内直接噴射(DI)
Max power, hp/rpm: 155ps(114kW)/6000rpm
Max torque, Nm/rpm: 20.0kg m(196N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 62 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 5.7

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type
Rear suspension: Multi-link
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 225/55R17 97V
Rear wheel: 225/55R17 97V
Min turn diameter, m: 5.6

Gearbox

Number of stages: 6AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.552	2.022	1.452	1.000	0.708	0.599	—	—	3.893

Available colors

black / Jet black micawhitegreenMaroon (brown) / Titanium flash micaOliveNavy bluePurpleAshes / Machine Gray Premium MetallicYellowYellow-greenBlack (P)MagentaSilver / Sonic Silver MetallicRed / Other RedBlue / Other BlueDark cyanPearl / Snowflake White Pearl MicaGold
