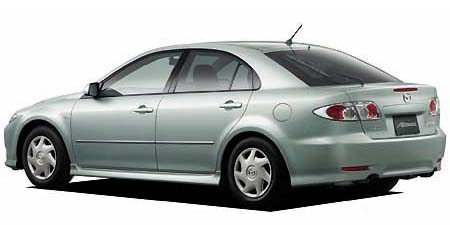

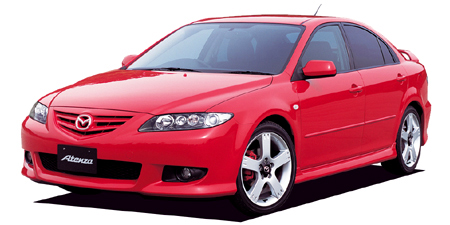

MAZDA ATENZA SPORT 23C

MAZDA ATENZA SPORT

GG3S · 23C

Description

Modification: 23C
Chassis ID: GG3S
Dates releasing: 2003.7~
Base price, ¥: UA-GG3S
Body size: 4670x1780x1445

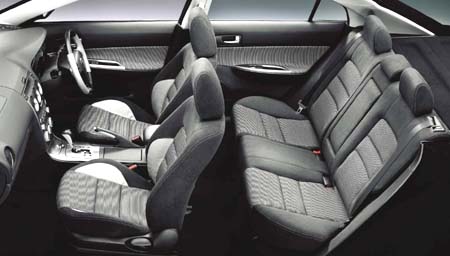

Interior (LxWxH): 1915x1500x1180
Wheelbase: 2675
Track f/r: 1550mm/1550mm
Full weight, kg: 1390
Body type: Sedan
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ◯
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×

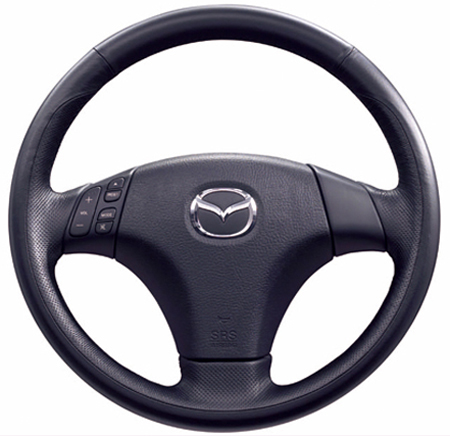

Leather steering wheel: ◯

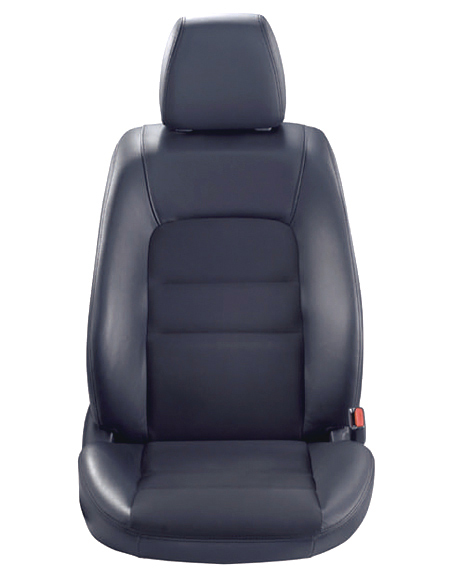

Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ◯
Sunroof: ◯

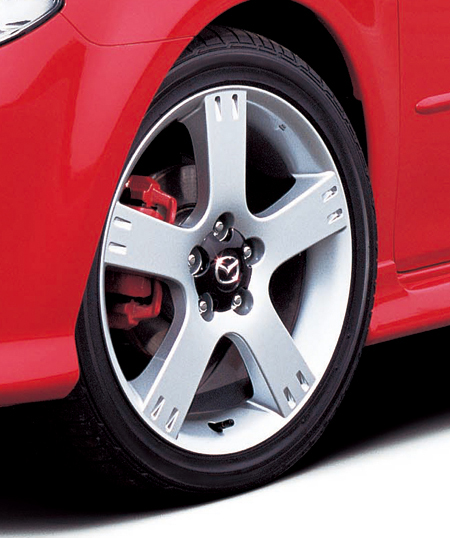

Alloy wheels: Option settings YES
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: L3-VE
Type: water cooling inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 87.5x94.0
Engine size, cc: 2260
Compression ratio: 10.6
Fuel injection: EGI(電子制御燃料噴射装置)
Max power, hp/rpm: 178ps(131kW)/6500rpm
Max torque, Nm/rpm: 21.9kg m(215N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 60 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 8.6

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone
Rear suspension: Multi-link

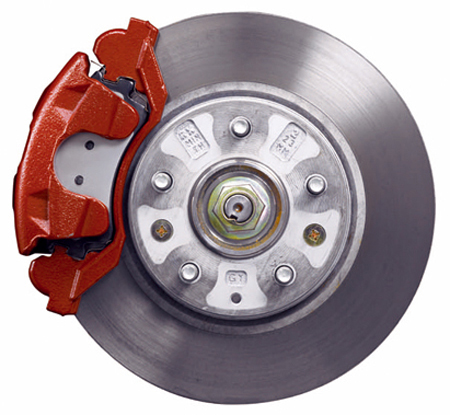

Front brake: Ventilated disk
Rear brake: disk
Front wheel: 195/65R15 91H
Rear wheel: 195/65R15 91H
Min turn diameter, m: 5.4

Gearbox

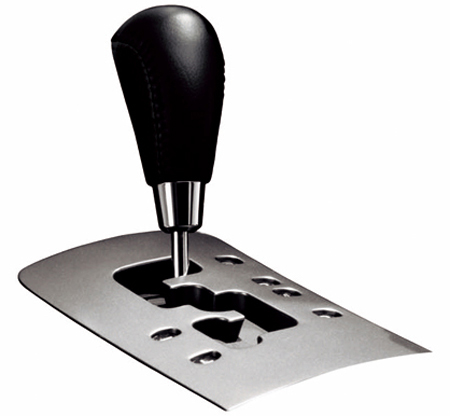

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

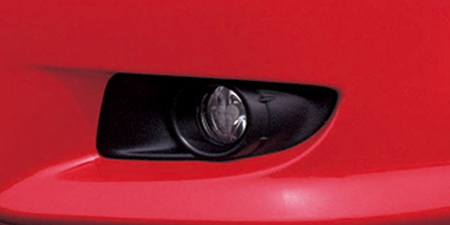

Front fog lights: ✓
Rear fog lights: ×

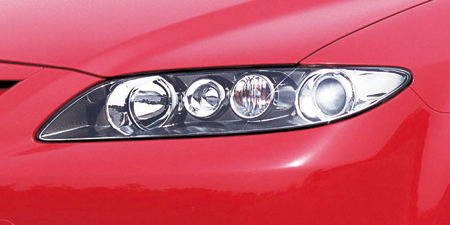

Xenon: ◯
Extra front lights: ×
Spoilers (f / r): ✓ / ◯
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: DVD
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.816	1.497	1.000	0.725	—	—	—	—	2.648

Available colors

black / black micawhitegreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellow / Other YellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearl / Other PearlGold
