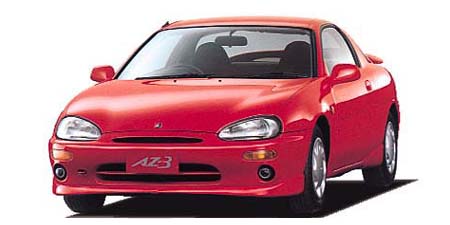

MAZDA AUTOZAM AZ3 SI ABS PACKAGE

MAZDA AUTOZAM AZ3

EC5SA · SI ABS PACKAGE

Description

Modification: SI ABS PACKAGE
Chassis ID: EC5SA
Dates releasing: 1991.6~
Base price, ¥: E-EC5SA
Body size: 4215x1695x1310
Interior (LxWxH): 1680x1410x1090
Wheelbase: 2455
Track f/r: 1460mm/1465mm
Full weight, kg: 1080
Body type: Coupe
Doors / seats: 3 door / 4

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: 一体
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: B5
Type: water cooling inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 78.0x78.4
Engine size, cc: 1498
Compression ratio: 9.0
Fuel injection: EGI(電子制御燃料噴射装置)
Max power, hp/rpm: 115ps(85kW)/6500rpm
Max torque, Nm/rpm: 13.5kg m(132.4N m)/5000rpm
Supercharger: ×
Fuel tank, liters: 50 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Independent suspension
Rear suspension: Strut type Independent suspension
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 185/65R14 85H
Rear wheel: 185/65R14 85H
Min turn diameter, m: 4.9

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ✓ / ✓
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.800	1.540	1.000	0.700	—	—	—	—	2.333

Available colors

black / Brilliant BlackwhitegreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellow / Other YellowYellow-greenBlack (P)MagentaSilverRed / Other RedBlueDark cyanPearlGold
