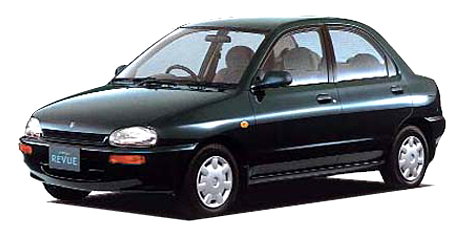

MAZDA AUTOZAM REVUE K

MAZDA AUTOZAM REVUE

DB5PA · K

Description

Modification: K
Chassis ID: DB5PA
Dates releasing: 1993.9~
Base price, ¥: E-DB5PA
Body size: 3800x1655x1470
Interior (LxWxH): 1780x1370x1235
Wheelbase: 2390
Track f/r: 1420mm/1400mm
Full weight, kg: 850
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ◯
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings YES
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: B5-MI
Type: water cooling inline 4 cylinder OHC 16-valves
Bore x stroke, mm: 78.0x78.4
Engine size, cc: 1498
Compression ratio: 9.4
Fuel injection: EGI-S(電子制御燃料噴射装置)
Max power, hp/rpm: 88ps(65kW)/6500rpm
Max torque, Nm/rpm: 12.0kg m(117.7N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 40 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 5.9

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Independent suspension
Rear suspension: Torsion beam
Front brake: disk
Rear brake: Drum
Front wheel: 165/70R13 79S
Rear wheel: 165/70R13 79S
Min turn diameter, m: 4.7

Gearbox

Number of stages: 5MT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ◯
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.416	1.842	1.290	0.972	0.775	—	—	—	3.214

Available colors

blackwhite / Other whitegreen / Other greenMaroon (brown)OliveNavy blue / Other Navy bluePurple / Other PurpleAshesYellowYellow-greenBlack (P)MagentaSilverRed / Other RedBlueDark cyanPearlGold
