MAZDA AXELA HYBRID HYBRID-C

MAZDA AXELA HYBRID

BYEFP · HYBRID-C

Description

Modification: HYBRID-C
Chassis ID: BYEFP
Dates releasing: 2013.11~
Base price, ¥: DAA-BYEFP
Body size: 4580x1795x1455
Interior (LxWxH): 1845x1505x1170
Wheelbase: 2700
Track f/r: 1555mm/1560mm
Full weight, kg: 1390
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: DSC(ダイナミックスタビリティコントロールシステム:横滑り防止機構)

Comfort

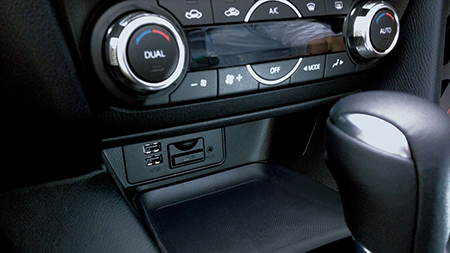

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×

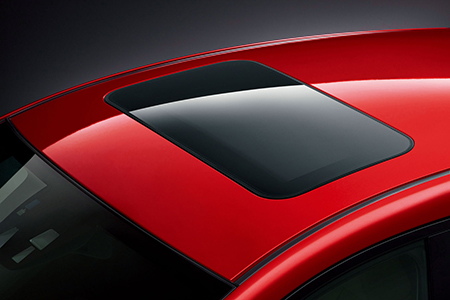

Sunroof: ×

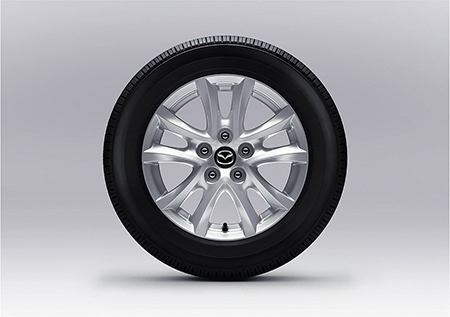

Alloy wheels: 16 inches standard
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ✓

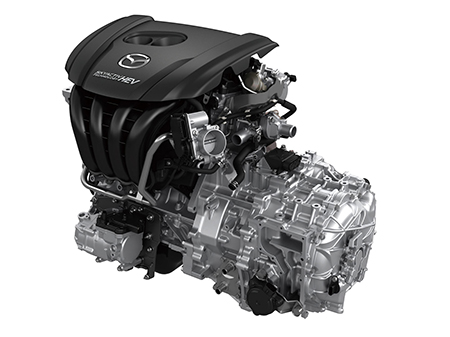

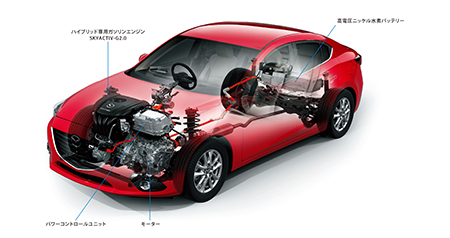

Engine

Model: PE-VPH
Type: water cooling inline 4 cylinder DOHC 16-valves +
Bore x stroke, mm: 83.5x91.2
Engine size, cc: 1997
Compression ratio: 14.0
Fuel injection: 筒内直接噴射(DI)
Max power, hp/rpm: 99ps(73kW)/5200rpm
Max torque, Nm/rpm: 14.5kg m(142N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 45 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 3.2

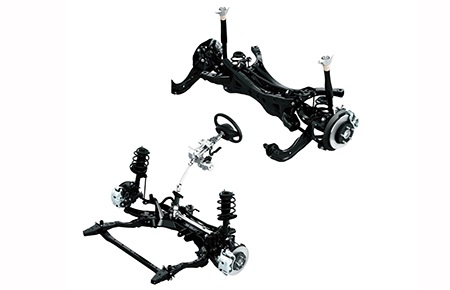

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type
Rear suspension: Multi-link
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 205/60R16 92V
Rear wheel: 205/60R16 92V
Min turn diameter, m: 5.3

Gearbox

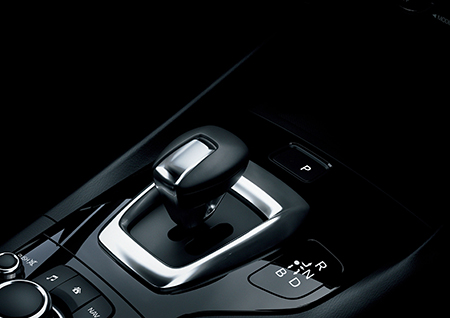

Number of stages: CVT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

black / Jet black micawhitegreenMaroon (brown) / Titanium flash micaOliveNavy blue / Deep crystal blue micaPurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearl / Snowflake White Pearl MicaGold
