JDM Vehicle Catalog

Vehicle Specs

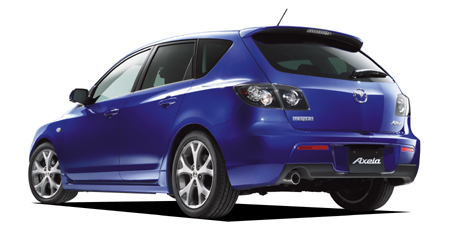

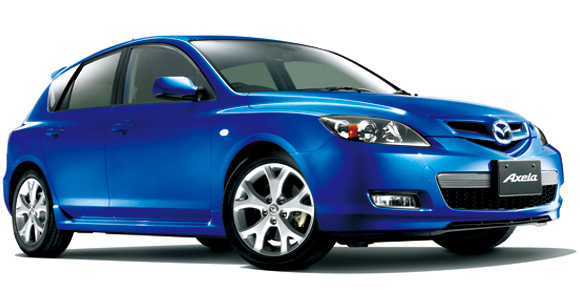

MAZDA AXELA SPORT 15C

MAZDA AXELA SPORT

BK5P · 15C

Description

Modification: 15C
Chassis ID: BK5P
Dates releasing: 2006.6~
Base price, ¥: DBA-BK5P
Body size: 4400x1745x1465
Interior (LxWxH): 1825x1435x1210
Wheelbase: 2640
Track f/r: 1530mm/1515mm
Full weight, kg: 1240
Body type: Hatch
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ◯
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings YES
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ◯

Engine

Model: ZY-VE
Type: water cooling inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 78.0x78.4
Engine size, cc: 1498
Compression ratio: 10.0
Fuel injection: EGI(電子制御燃料噴射)
Max power, hp/rpm: 114ps(84kW)/6000rpm
Max torque, Nm/rpm: 14.3kg m(140N m)/4500rpm
Supercharger: ×
Fuel tank, liters: 55 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 5.7

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type
Rear suspension: Multi-link
Front brake: Ventilated disk
Rear brake: Drum

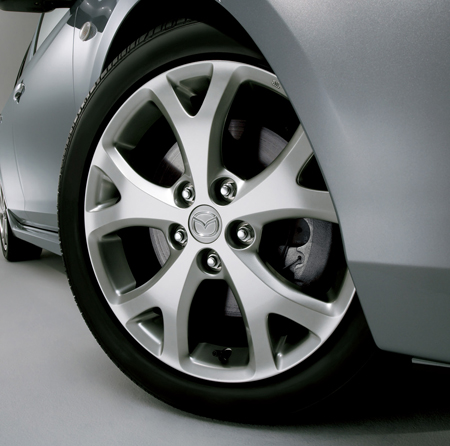

Front wheel: 195/65R15 91H
Rear wheel: 195/65R15 91H
Min turn diameter, m: 5.2

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ◯
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.816	1.553	1.000	0.695	—	—	—	—	2.279

Available colors

black / black micawhite / Arctic WhitegreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P) / Other Black (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyan / Other Dark cyanPearl / Other PearlGold
