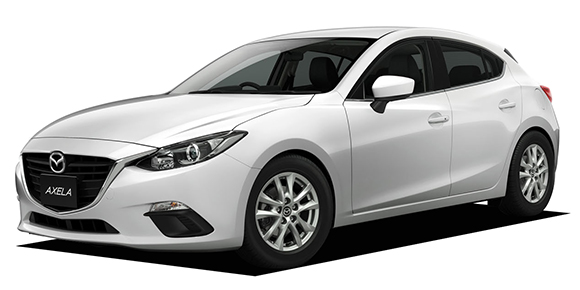

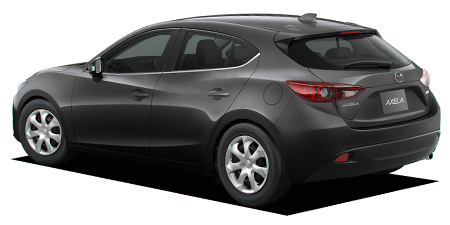

MAZDA AXELA SPORT 15C

MAZDA AXELA SPORT

BM5FS · 15C

Description

Modification: 15C
Chassis ID: BM5FS
Dates releasing: 2014.4~
Base price, ¥: DBA-BM5FS
Body size: 4460x1795x1470
Interior (LxWxH): 1845x1505x1170
Wheelbase: 2700
Track f/r: 1555mm/1560mm
Full weight, kg: 1270
Body type: Hatch
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: DSC(ダイナミックスタビリティコントロールシステム:横滑り防止機構)

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×

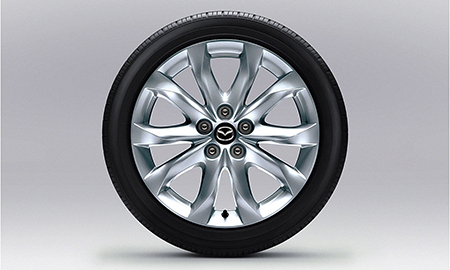

Alloy wheels: Option settings NO
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ◯

Engine

Model: P5-VPS
Type: water cooling inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 74.5x85.8
Engine size, cc: 1496
Compression ratio: 13.0
Fuel injection: 筒内直接噴射(DI)
Max power, hp/rpm: 111ps(82kW)/6000rpm
Max torque, Nm/rpm: 14.7kg m(144N m)/3500rpm
Supercharger: ×
Fuel tank, liters: 51 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 5.2

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type
Rear suspension: Multi-link
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 205/60R16 92V
Rear wheel: 205/60R16 92V
Min turn diameter, m: 5.3

Gearbox

Number of stages: 6AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.552	2.022	1.452	1.000	0.708	0.599	—	—	3.893

Available colors

black / Jet black micawhitegreenMaroon (brown) / Titanium flash micaOliveNavy blue / Deep crystal blue micaPurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlue / Other BlueDark cyanPearl / Snowflake White Pearl MicaGold
