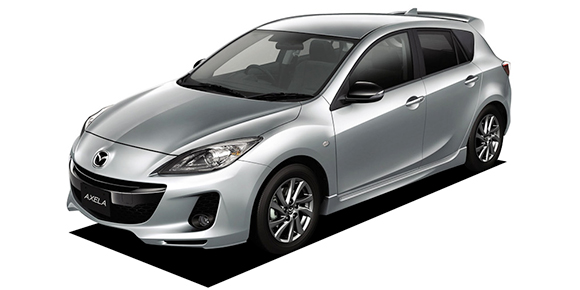

MAZDA AXELA SPORT 15S SPORTS EDITION

MAZDA AXELA SPORT

BL5FW · 15S SPORTS EDITION

Description

Modification: 15S SPORTS EDITION
Chassis ID: BL5FW
Dates releasing: 2012.12~
Base price, ¥: DBA-BL5FW
Body size: 4460x1755x1490
Interior (LxWxH): 1980x1475x1200
Wheelbase: 2640
Track f/r: 1535mm/1520mm
Full weight, kg: 1250
Body type: Hatch
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: DSC(ダイナミックスタビリティコントロールシステム横滑り防止機構)

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 16 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: ZY-VE
Type: water cooling inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 78.0x78.4
Engine size, cc: 1498
Compression ratio: 10.0
Fuel injection: 筒内直接噴射(DI)
Max power, hp/rpm: 111ps(82kW)/6000rpm
Max torque, Nm/rpm: 14.3kg m(140N m)/4500rpm
Supercharger: ×
Fuel tank, liters: 55 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 6.4

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type
Rear suspension: Multi-link
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 205/55R16 91V
Rear wheel: 205/55R16 91V
Min turn diameter, m: 5.1

Gearbox

Number of stages: CVT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): ✓ / ✓
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.386~0.426	—	—	—	—	—	—	—	—	2.505

Available colors

black / black micawhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearl / Other PearlGold
