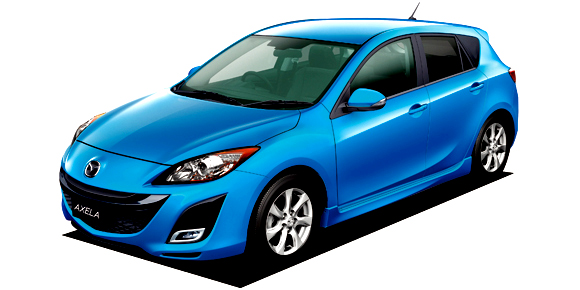

MAZDA AXELA SPORT 20E

MAZDA AXELA SPORT

BLEAW · 20E

Description

Modification: 20E
Chassis ID: BLEAW
Dates releasing: 2009.6~
Base price, ¥: DBA-BLEAW
Body size: 4490x1755x1505
Interior (LxWxH): 1980x1475x1200
Wheelbase: 2640
Track f/r: 1535mm/1525mm
Full weight, kg: 1420

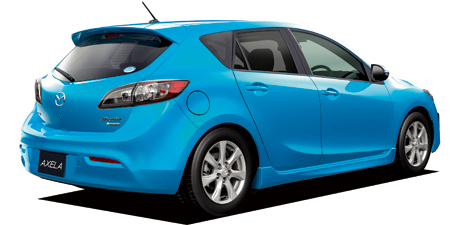

Body type: Hatch
Doors / seats: 5 door / 5

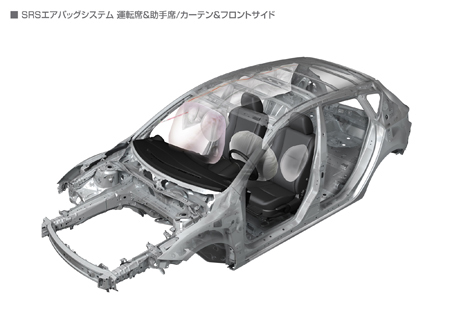

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: ×

Comfort

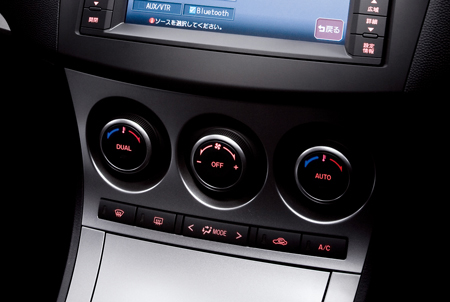

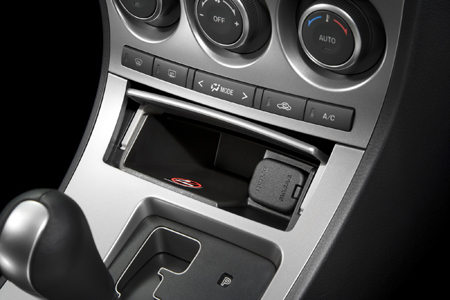

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓

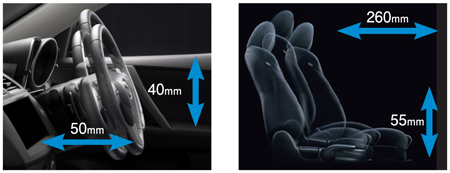

Steering column length: ✓
Steering column height: ✓
Cruise control: ×

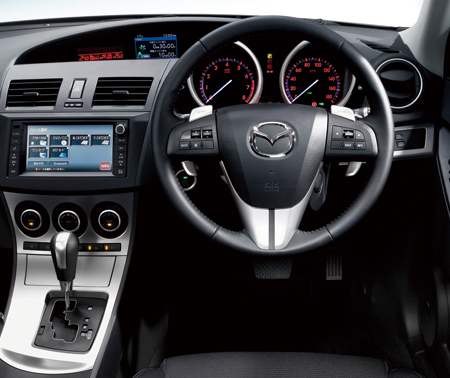

Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×

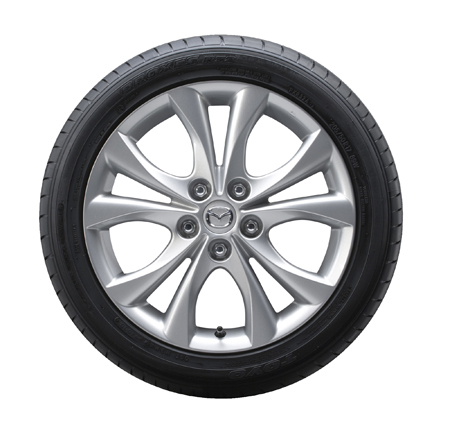

Alloy wheels: Option settings NO

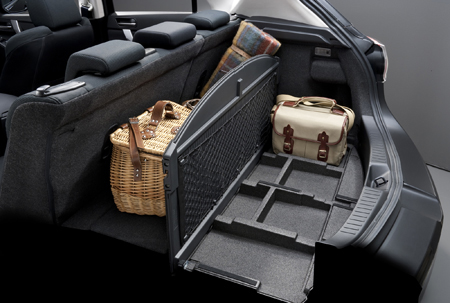

Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

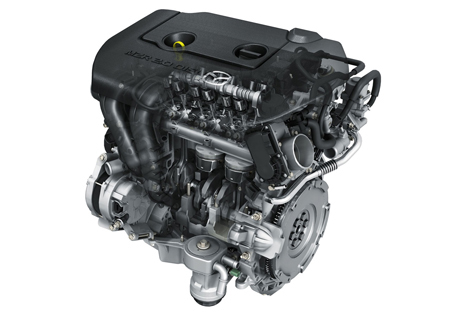

Engine

Model: LF-VE
Type: water cooling inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 87.5x83.1
Engine size, cc: 1998
Compression ratio: 10.0
Fuel injection: EGI(電子制御燃料噴射)
Max power, hp/rpm: 143ps(105kW)/6500rpm
Max torque, Nm/rpm: 18.3kg m(179N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 55 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 8.6

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type
Rear suspension: Multi-link
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 195/70R15 92H
Rear wheel: 195/70R15 92H
Min turn diameter, m: 5.1

Gearbox

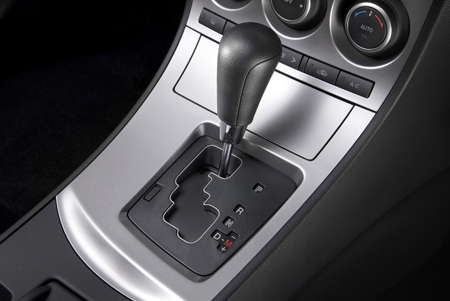

Number of stages: 4AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ◯
Extra front lights: ×
Spoilers (f / r): ✓ / ✓
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: HDD
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.800	1.540	1.000	0.700	—	—	—	—	2.333

Available colors

black / black micawhitegreenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearl / Other PearlGold
