JDM Vehicle Catalog

Vehicle Specs

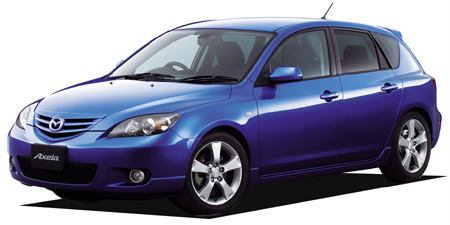

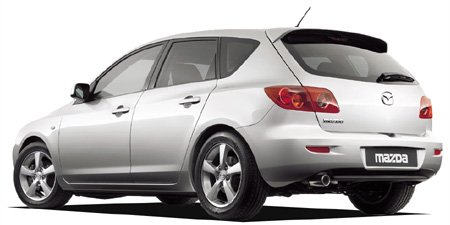

MAZDA AXELA SPORT 23S

MAZDA AXELA SPORT

BK3P · 23S

Description

Modification: 23S
Chassis ID: BK3P
Dates releasing: 2003.10~
Base price, ¥: UA-BK3P
Body size: 4485x1745x1465
Interior (LxWxH): 1825x1435x1210
Wheelbase: 2640
Track f/r: 1530mm/1515mm
Full weight, kg: 1280
Body type: Hatch
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ◯
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 17 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: L3-VE
Type: water cooling inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 87.5x94.0
Engine size, cc: 2260
Compression ratio: 10.6
Fuel injection: EGI(電子制御燃料噴射)
Max power, hp/rpm: 171ps(126kW)/6500rpm
Max torque, Nm/rpm: 21.8kg m(214N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 55 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 8.6

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson
Rear suspension: Multi-link
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 205/50R17 89V
Rear wheel: 205/50R17 89V
Min turn diameter, m: 5.2

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ◯
Extra front lights: ✓
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: DVD
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.816	1.497	1.000	0.725	—	—	—	—	2.648

Available colors

black / black micawhite / Arctic Whitegreen / Other greenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Other AshesYellow / Other YellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearlGold
