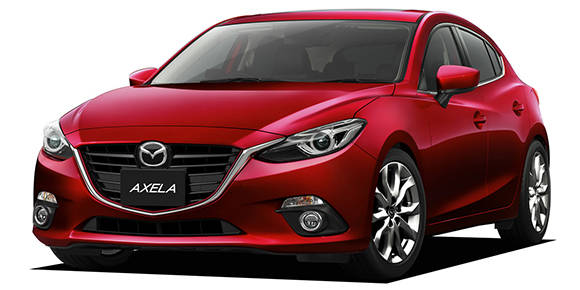

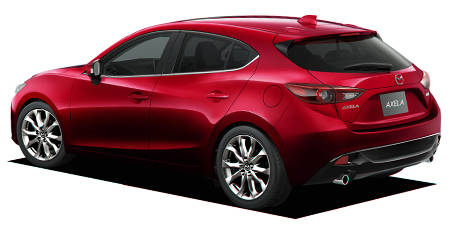

MAZDA AXELA SPORT XD

MAZDA AXELA SPORT

BM2FS · XD

Description

Modification: XD
Chassis ID: BM2FS
Dates releasing: 2015.8~
Base price, ¥: LDA-BM2FS
Body size: 4460x1795x1470
Interior (LxWxH): 1845x1505x1165
Wheelbase: 2700
Track f/r: 1555mm/1560mm
Full weight, kg: 1450
Body type: Hatch
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: DSC(ダイナミックスタビリティコントロールシステム横滑り防止機構)

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓

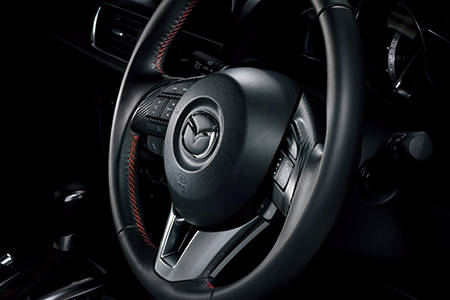

Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ×
Sunroof: シングル

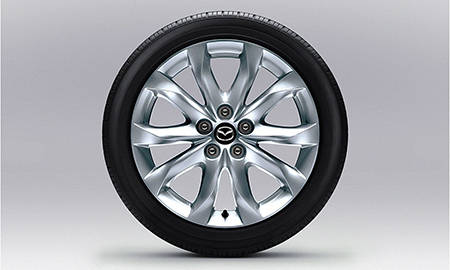

Alloy wheels: 18 inches standard

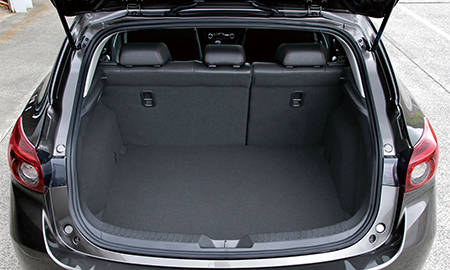

Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: SH-VPTR
Type: water cooling inline 4 cylinder DOHC 16-valves turbo (Diesel)
Bore x stroke, mm: 86.0x94.2
Engine size, cc: 2188
Compression ratio: 14.0
Fuel injection: 電子 type (コモンレール)
Max power, hp/rpm: 175ps(129kW)/4500rpm
Max torque, Nm/rpm: 42.8kg m(420N m)/2000rpm
Supercharger: Turbo
Fuel tank, liters: 51 l
Fuel: Diesel
Fuel consumption, l/100km: 5.1

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type
Rear suspension: Multi-link
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 215/45R18 89W
Rear wheel: 215/45R18 89W
Min turn diameter, m: 5.3

Gearbox

Number of stages: 6AT
Drive: FF
LSD: ----

Exterior equipment

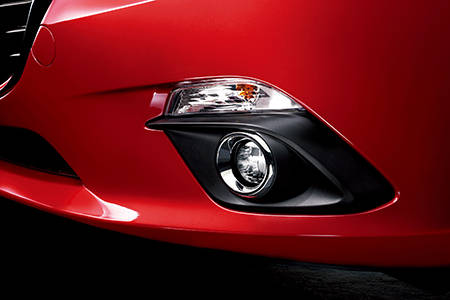

Front fog lights: ✓
Rear fog lights: ×
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.487	1.992	1.449	1.000	0.707	0.600	—	—	3.990

Available colors

black / Jet black micawhitegreenMaroon (brown)OliveNavy blue / Deep crystal blue micaPurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlueDark cyanPearl / Snowflake White Pearl MicaGold
