JDM Vehicle Catalog

Vehicle Specs

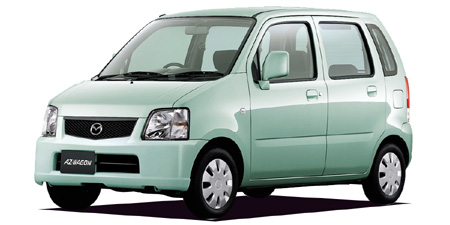

MAZDA AZWAGON FZ-T

MAZDA AZWAGON

MD22S · FZ-T

Description

Modification: FZ-T
Chassis ID: MD22S
Dates releasing: 2003.4~
Base price, ¥: TA-MD22S
Body size: 3395x1475x1680
Interior (LxWxH): 1765x1260x1305
Wheelbase: 2360
Track f/r: 1295mm/1290mm
Full weight, kg: 850
Body type: Key SUV
Doors / seats: 5 door / 4

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: 採用
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 13 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: K6A
Type: water cooling inline 3 cylinder DOHC 12-valves IC-turbo
Bore x stroke, mm: 68.0x60.4
Engine size, cc: 658
Compression ratio: 8.9
Fuel injection: EPI(電子制御燃料噴射装置)
Max power, hp/rpm: 60ps(44kW)/6000rpm
Max torque, Nm/rpm: 8.5kg m(83N m)/3000rpm
Supercharger: IC turbo
Fuel tank, liters: 30 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 5.9

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: ITL
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 155/65R13 73S
Rear wheel: 155/65R13 73S
Min turn diameter, m: 4.2

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): ✓ / ✓
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.914	1.525	1.000	0.725	—	—	—	—	2.642

Available colors

black / Bluish Black III PearlwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P) / Other Black (P)MagentaSilver / Silver metallicRedBlueDark cyanPearl / Pearl WhiteGold / Other Gold
