Vehicle Specs

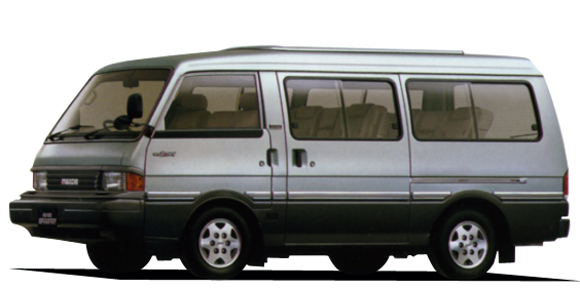

MAZDA BONGO BRAWNY WAGON GL

MAZDA BONGO BRAWNY WAGON

SRE9W · GL

Description

Modification: GL
Chassis ID: SRE9W
Dates releasing: 1987.9~
Base price, ¥: E-SRE9W
Body size: 4385x1690x1970
Interior (LxWxH): 3195x1540x1320
Wheelbase: 2400
Track f/r: 1450mm/1410mm
Full weight, kg: 1370
Body type: MV 1Box
Doors / seats: 4 door / 9

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ×
Child-seat fixation: ×
Safety planks: ×
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: ×
Power window: ×
Central switch: ×
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings YES
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: FE
Type: water cooling inline 4 cylinder SOHC
Bore x stroke, mm: 86.0x86.0
Engine size, cc: 1998
Compression ratio: 8.6
Fuel injection: キャブレター
Max power, hp/rpm: 82ps(60kW)/5000rpm
Max torque, Nm/rpm: 15.5kg m(152.0N m)/2500rpm
Supercharger: ×
Fuel tank, liters: 62 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 10

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: ウイッシュボーン type トーションバー&#
Rear suspension: Axle 半だ円板ばね
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 185SR14
Rear wheel: 185SR14
Min turn diameter, m: 4.6

Gearbox

Number of stages: 5MT
Drive: FR
LSD: ◯

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.622	2.186	1.419	1.000	0.807	—	—	—	3.493

Available colors

blackwhite / Other whitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlue / Other BlueDark cyanPearlGold
