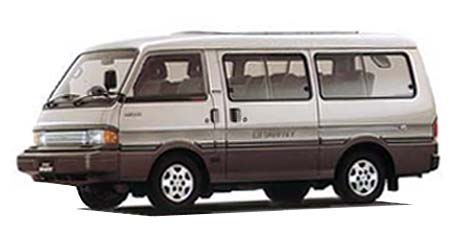

MAZDA BONGO BRAWNY WAGON GSX

MAZDA BONGO BRAWNY WAGON

SRF9W · GSX

Description

Modification: GSX
Chassis ID: SRF9W
Dates releasing: 1990.3~
Base price, ¥: Q-SRF9W
Body size: 4590x1690x1970
Interior (LxWxH): 3195x1480x1320
Wheelbase: 2400
Track f/r: 1450mm/1410mm
Full weight, kg: 1570
Body type: MV 1Box
Doors / seats: 4 door / 9

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ×
Child-seat fixation: ×
Safety planks: ×
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: ×
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings YES
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: RF
Type: water cooling inline 4 cylinder OHCturbo (Diesel)
Bore x stroke, mm: 86.0x86.0
Engine size, cc: 1998
Compression ratio: 21.1
Fuel injection: 分配 type 燃料噴射ポンプ
Max power, hp/rpm: 76ps(56kW)/4000rpm
Max torque, Nm/rpm: 17.5kg m(171.6N m)/2000rpm
Supercharger: Turbo
Fuel tank, liters: 62 l
Fuel: Diesel
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: ウイッシュボーン type トーションバー&#
Rear suspension: Axle 半だ円板ばね
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 185SR14
Rear wheel: 185SR14
Min turn diameter, m: 4.6

Gearbox

Number of stages: 5MT
Drive: FR
LSD: ◯

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.958	2.332	1.407	1.000	0.868	—	—	—	4.263

Available colors

blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlueDark cyanPearlGold
