JDM Vehicle Catalog

Vehicle Specs

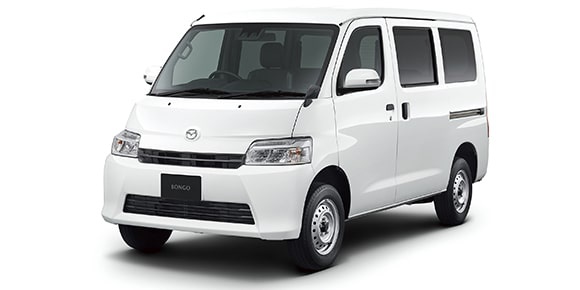

MAZDA BONGO VAN STD

MAZDA BONGO VAN

S403Z · STD

Description

Modification: STD
Chassis ID: S403Z
Dates releasing: 2020.9~
Base price, ¥: 5BF-S403Z
Body size: 4065x1665x1930
Interior (LxWxH): ----x----x----
Wheelbase: 2650
Track f/r: 1460mm/1440mm
Full weight, kg: 1270
Body type: Cab-over van
Doors / seats: 5 door / 2

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ×
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: VSC

Comfort

Air conditioner: Manual
Power window: ×
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 2NR-VE
Type: water cooling inline 4 cylinder
Bore x stroke, mm: 72.5x90.6
Engine size, cc: 1496
Compression ratio: 11.5
Fuel injection: EFI(電子制御 type 燃料噴射)
Max power, hp/rpm: 97ps(71kW)/6000rpm
Max torque, Nm/rpm: 13.7kg m(134N m)/4400rpm
Supercharger: ×
Fuel tank, liters: 43 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 6.4

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: トレーリング type Coil spring
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 165/80R14 97/95N LT
Rear wheel: 165/80R14 97/95N LT
Min turn diameter, m: 4.9

Gearbox

Number of stages: 5MT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ◯
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ◯

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.059	2.045	1.376	1.000	0.742	—	—	—	4.128

Available colors

blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Silver metallicRedBlueDark cyanPearlGold
