JDM Vehicle Catalog

Vehicle Specs

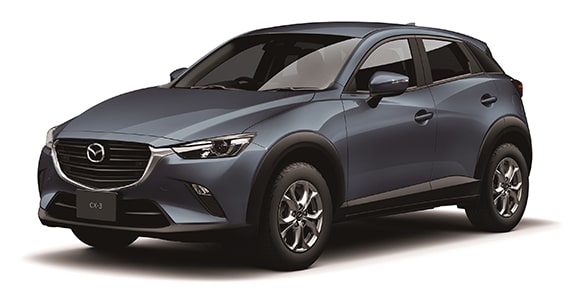

MAZDA CX3 15S

MAZDA CX3

DKLAW · 15S

Description

Modification: 15S
Chassis ID: DKLAW
Dates releasing: 2021.11~
Base price, ¥: 5BA-DKLAW
Body size: 4275x1765x1550
Interior (LxWxH): 1810x1435x1210
Wheelbase: 2570
Track f/r: 1525mm/1520mm
Full weight, kg: 1290
Body type: SUV
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: ダイナミックスタビリティコントロールシステム[横滑り防止機構](DSC)

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 16 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: P5-VPS
Type: water cooling inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 74.5x85.8
Engine size, cc: 1496
Compression ratio: 13.0
Fuel injection: 筒内直接噴射(DI)
Max power, hp/rpm: 111ps(82kW)/6000rpm
Max torque, Nm/rpm: 14.7kg m(144N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 44 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 215/60R16 95V
Rear wheel: 215/60R16 95V
Min turn diameter, m: 5.3

Gearbox

Number of stages: 6AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.529	2.025	1.348	1.000	0.742	0.594	—	—	2.994

Available colors

black / Jet black micawhitegreenMaroon (brown)OliveNavy blue / Deep crystal blue micaPurpleAshes / polymetal gray metallic / Machine Gray Premium MetallicYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Soul Red Crystal MetallicBlueDark cyanPearl / Snowflake White Pearl MicaGold / Other Gold
