JDM Vehicle Catalog

Vehicle Specs

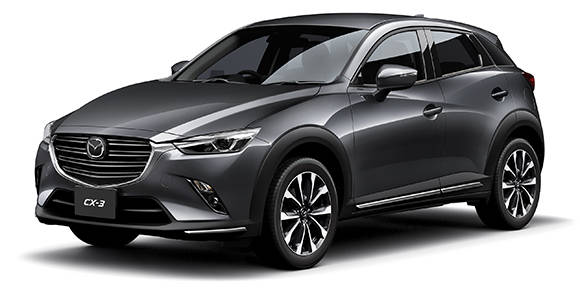

MAZDA CX3 20S PROACTIVE

MAZDA CX3

DKEFW · 20S PROACTIVE

Description

Modification: 20S PROACTIVE
Chassis ID: DKEFW
Dates releasing: 2018.5~
Base price, ¥: 6BA-DKEFW
Body size: 4275x1765x1550
Interior (LxWxH): 1810x1435x1210
Wheelbase: 2570
Track f/r: 1525mm/1520mm
Full weight, kg: 1230
Body type: SUV
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: ダイナミックスタビリティコントロールシステム[横滑り防止機構](DSC)

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 18 inches standard

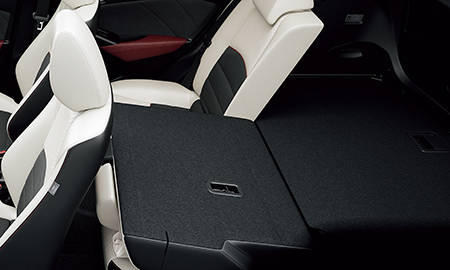

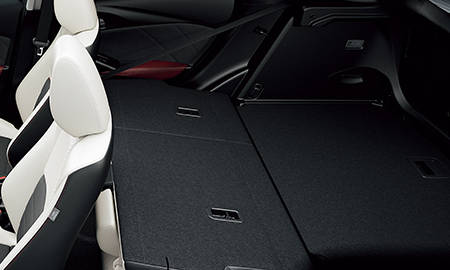

Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

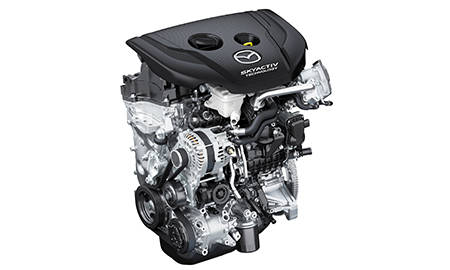

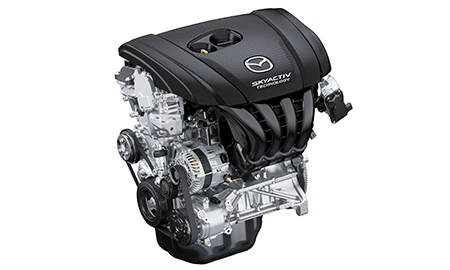

Engine

Model: PE-VPS
Type: water cooling inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 83.5x91.2
Engine size, cc: 1997
Compression ratio: 13.0
Fuel injection: 筒内直接噴射(DI)
Max power, hp/rpm: 150ps(110kW)/6000rpm
Max torque, Nm/rpm: 19.9kg m(195N m)/2800rpm
Supercharger: ×
Fuel tank, liters: 48 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: disk

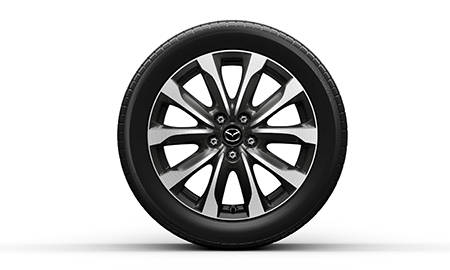

Front wheel: 215/50R18 92V
Rear wheel: 215/50R18 92V
Min turn diameter, m: 5.3

Gearbox

Number of stages: 6MT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.363	1.947	1.300	1.029	0.837	0.680	—	—	3.385

Available colors

black / Jet black micawhitegreenMaroon (brown) / Titanium flash micaOliveNavy blue / Deep crystal blue micaPurpleAshes / Machine Gray Premium MetallicYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Soul Red Crystal MetallicBlue / Other BlueDark cyanPearl / Snowflake White Pearl MicaGold
