MAZDA CX3 XD

MAZDA CX3

DK5AW · XD

Description

Modification: XD
Chassis ID: DK5AW
Dates releasing: 2017.6~
Base price, ¥: LDA-DK5AW
Body size: 4275x1765x1550
Interior (LxWxH): 1810x1435x1210
Wheelbase: 2570
Track f/r: 1525mm/1520mm
Full weight, kg: 1340
Body type: SUV
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: ダイナミックスタビリティコントロールシステム[横滑り防止機構](DSC)

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×

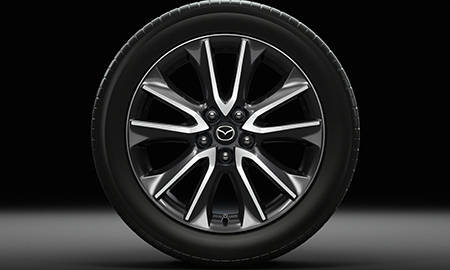

Alloy wheels: 18 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: S5-DPTS
Type: water cooling inline 4 cylinder DOHC 16-valves turbo (Diesel)
Bore x stroke, mm: 76.0x82.6
Engine size, cc: 1498
Compression ratio: 14.8
Fuel injection: 電子 type (コモンレール)
Max power, hp/rpm: 105ps(77kW)/4000rpm
Max torque, Nm/rpm: 27.5kg m(270N m)/1600~2500rpm
Supercharger: Turbo
Fuel tank, liters: 44 l
Fuel: Diesel
Fuel consumption, l/100km: 4.8

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 215/50R18 92V
Rear wheel: 215/50R18 92V
Min turn diameter, m: 5.3

Gearbox

Number of stages: 6AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.552	2.022	1.452	1.000	0.708	0.599	—	—	3.893

Available colors

black / Jet black micawhitegreenMaroon (brown) / Titanium flash micaOliveNavy blue / Deep crystal blue micaPurpleAshes / Machine Gray Premium MetallicYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Soul Red Crystal MetallicBlue / Other BlueDark cyanPearl / Snowflake White Pearl MicaGold
