JDM Vehicle Catalog

Vehicle Specs

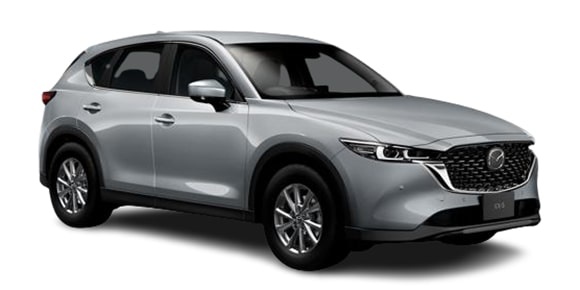

MAZDA CX5 25S L PACKAGE

MAZDA CX5

KF5P · 25S L PACKAGE

Description

Modification: 25S L PACKAGE
Chassis ID: KF5P
Dates releasing: 2022.11~
Base price, ¥: 6BA-KF5P
Body size: 4575x1845x1690
Interior (LxWxH): 1890x1540x1265
Wheelbase: 2700
Track f/r: 1595mm/1595mm
Full weight, kg: 1650
Body type: SUV
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: ダイナミックスタビリティコントロールシステム[横滑り防止機構](DSC)

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ✓
Sunroof: ×
Alloy wheels: 19 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: PY-RPS
Type: water cooling inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 89.0x100.0
Engine size, cc: 2488
Compression ratio: 13.0
Fuel injection: 筒内直接噴射(DI)
Max power, hp/rpm: 188ps(138kW)/6000rpm
Max torque, Nm/rpm: 25.5kg m(250N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 58 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 7

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type
Rear suspension: Multi-link
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 225/55R19 99V
Rear wheel: 225/55R19 99V
Min turn diameter, m: 5.5

Gearbox

Number of stages: 6AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.552	2.022	1.452	1.000	0.708	0.599	—	—	3.893

Available colors

black / Jet black micawhitegreenMaroon (brown)Olive / Other OliveNavy blue / Deep crystal blue micaPurpleAshes / polymetal gray metallic / Machine Gray Premium MetallicYellowYellow-greenBlack (P)MagentaSilver / Sonic Silver Metallic / Other SilverRed / Soul Red Crystal MetallicBlueDark cyanPearlGold
