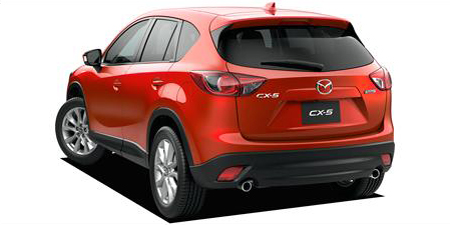

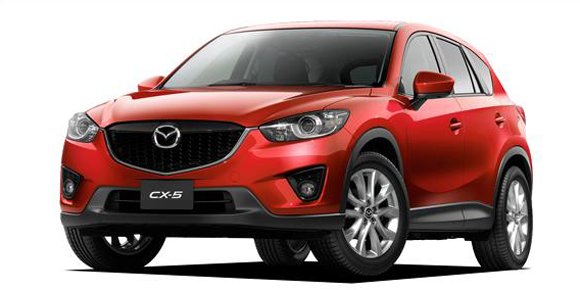

MAZDA CX5 XD L PACKAGE

MAZDA CX5

KE2FW · XD L PACKAGE

Description

Modification: XD L PACKAGE
Chassis ID: KE2FW
Dates releasing: 2012.2~
Base price, ¥: LDA-KE2FW
Body size: 4540x1840x1705
Interior (LxWxH): 1910x1530x1280
Wheelbase: 2700
Track f/r: 1585mm/1590mm
Full weight, kg: 1530
Body type: SUV
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: DSC(ダイナミックスタビリティコントロールシステム横滑り防止機構)

Comfort

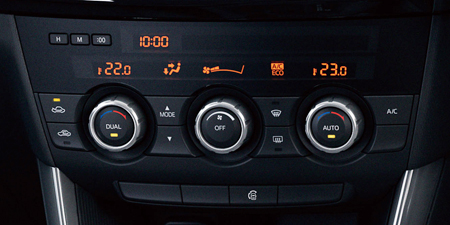

Air conditioner: Full Auto

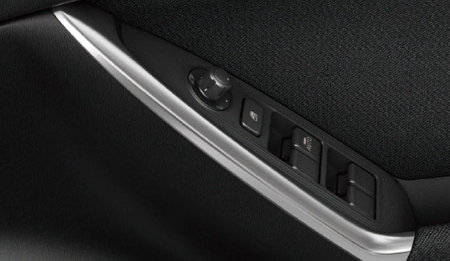

Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓

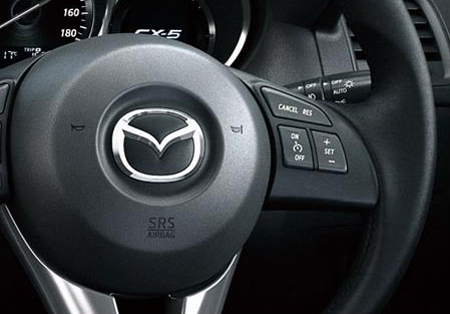

Cruise control: ✓

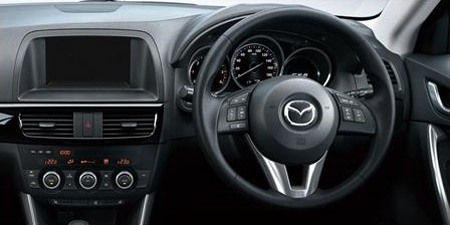

Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 19 inches standard

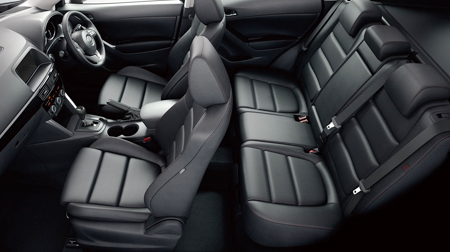

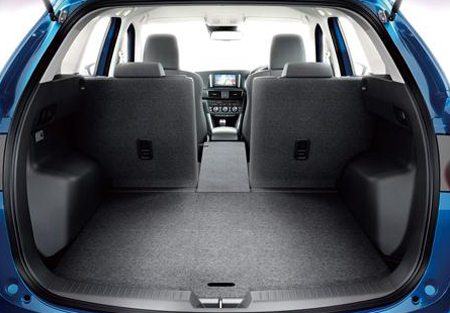

Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: SH-VPTS
Type: water cooling inline 4 cylinder DOHC 16-valves turbo (Diesel)
Bore x stroke, mm: 86.0x94.2
Engine size, cc: 2188
Compression ratio: 14.0
Fuel injection: 電子 type (コモンレール)
Max power, hp/rpm: 175ps(129kW)/4500rpm
Max torque, Nm/rpm: 42.8kg m(420N m)/2000rpm
Supercharger: Turbo
Fuel tank, liters: 56 l
Fuel: Diesel
Fuel consumption, l/100km: 5.2

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type
Rear suspension: Multi-link
Front brake: Ventilated disk
Rear brake: disk

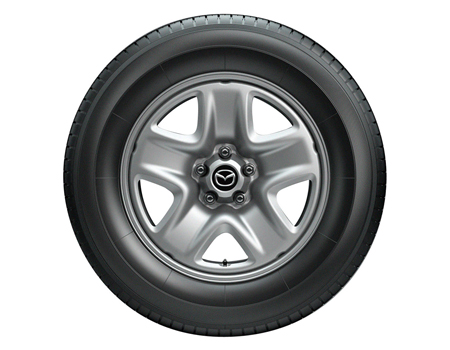

Front wheel: 225/55R19 99V
Rear wheel: 225/55R19 99V
Min turn diameter, m: 5.5

Gearbox

Number of stages: 6AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×

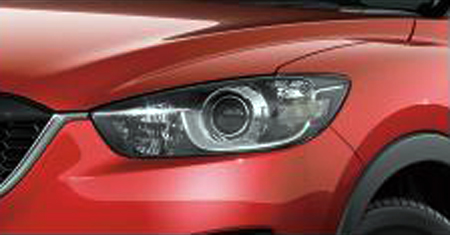

Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.487	1.992	1.449	1.000	0.707	0.600	—	—	3.990

Available colors

black / black micawhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearl / Other PearlGold
