MAZDA CX60 XD-HYBRID TREKKER

MAZDA CX60

KH3R3P · XD-HYBRID TREKKER

Description

Modification: XD-HYBRID TREKKER
Chassis ID: KH3R3P
Dates releasing: 2025.2~
Base price, ¥: 3CA-KH3R3P
Body size: 4740x1890x1685
Interior (LxWxH): 1910x1550x1215
Wheelbase: 2870
Track f/r: 1640mm/1645mm
Full weight, kg: 1970
Body type: SUV
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: ダイナミックスタビリティコントロールシステム[横滑り防止機構](DSC) ヒ&#125

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ×

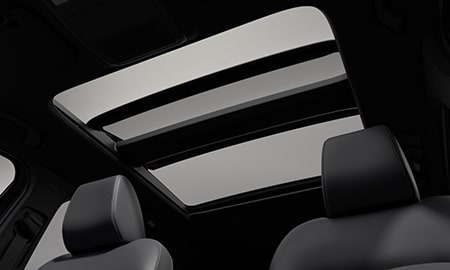

Sunroof: 特殊形状
Alloy wheels: 20 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: T3-VPTH
Type: water cooling inline 6 cylinder DOHC 24-valves turbo + (Diesel)
Bore x stroke, mm: 86.0x94.2
Engine size, cc: 3283
Compression ratio: 15.2
Fuel injection: 電子 type (コモンレール)
Max power, hp/rpm: 254ps(187kW)/3750rpm
Max torque, Nm/rpm: 56.1kg m(550N m)/1500~2400rpm
Supercharger: Turbo
Fuel tank, liters: 58 l
Fuel: Diesel
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone
Rear suspension: Multi-link
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 235/50R20
Rear wheel: 235/50R20
Min turn diameter, m: 5.4

Gearbox

Number of stages: 8AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	5.258	3.303	2.129	1.705	1.300	1.000	0.822	0.628	4.034

Available colors

black / Jet black micawhitegreenMaroon (brown)Olive / Other OliveNavy blue / Deep crystal blue micaPurpleAshes / Machine Gray Premium MetallicYellowYellow-greenBlack (P)MagentaSilver / Sonic Silver Metallic / Other SilverRed / Soul Red Crystal MetallicBlueDark cyanPearlGold / Other Gold
