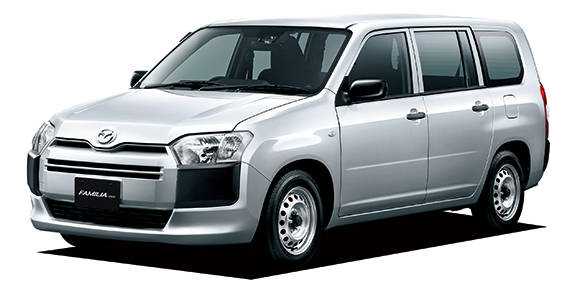

MAZDA FAMILIA VAN GX

MAZDA FAMILIA VAN

NCP160M · GX

Description

Modification: GX
Chassis ID: NCP160M
Dates releasing: 2018.6~
Base price, ¥: DBE-NCP160M
Body size: 4245x1690x1525
Interior (LxWxH): ----x----x----
Wheelbase: 2550
Track f/r: 1485mm/1465mm
Full weight, kg: 1090
Body type: Bonnet van
Doors / seats: 5 door / 2

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ×
Additional equipment: ダイナミックスタビリティコントロールシステム[横滑り防止機構](DSC)

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: 一体
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 1NZ-FE
Type: water cooling inline 4 cylinder DOHC
Bore x stroke, mm: 75.0x84.7
Engine size, cc: 1496
Compression ratio: 11.0
Fuel injection: 電子制御燃料噴射
Max power, hp/rpm: 109ps(80kW)/6000rpm
Max torque, Nm/rpm: 13.9kg m(136N m)/4800rpm
Supercharger: ×
Fuel tank, liters: 50 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 5.1

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type
Rear suspension: ラテラルロッド付トレーリングリン
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 155/80R14 88/86N LT
Rear wheel: 155/80R14 88/86N LT
Min turn diameter, m: 4.9

Gearbox

Number of stages: CVT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.480~0.396	—	—	—	—	—	—	—	—	2.604~1.680

Available colors

blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Silver metallicRedBlueDark cyanPearlGold
