JDM Vehicle Catalog

Vehicle Specs

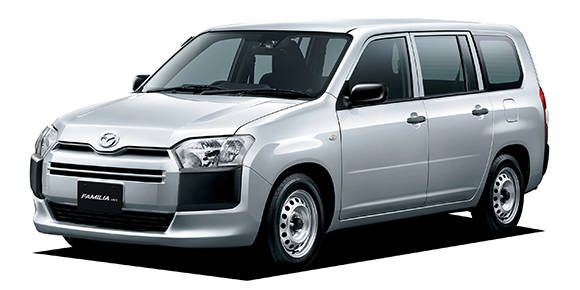

MAZDA FAMILIA VAN GX

MAZDA FAMILIA VAN

NCP165M · GX

Description

Modification: GX
Chassis ID: NCP165M
Dates releasing: 2018.12~
Base price, ¥: DBE-NCP165M
Body size: 4245x1690x1530
Interior (LxWxH): ----x----x----
Wheelbase: 2550
Track f/r: 1485mm/1455mm
Full weight, kg: 1170
Body type: Bonnet van
Doors / seats: 5 door / 2

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ダイナミックスタビリティコントロールシステム[横滑り防止機構](DSC)

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: 一体
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 1NZ-FE
Type: water cooling inline 4 cylinder DOHC
Bore x stroke, mm: 75.0x84.7
Engine size, cc: 1496
Compression ratio: 10.5
Fuel injection: 電子制御燃料噴射
Max power, hp/rpm: 103ps(76kW)/6000rpm
Max torque, Nm/rpm: 13.5kg m(132N m)/4400rpm
Supercharger: ×
Fuel tank, liters: 50 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 6.3

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type
Rear suspension: ラテラルロッド付トレーリングリン
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 155/80R14 88/86N LT
Rear wheel: 155/80R14 88/86N LT
Min turn diameter, m: 4.9

Gearbox

Number of stages: CVT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.386~0.411	—	—	—	—	—	—	—	—	2.505~1.680

Available colors

blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Silver metallicRedBlueDark cyanPearlGold
