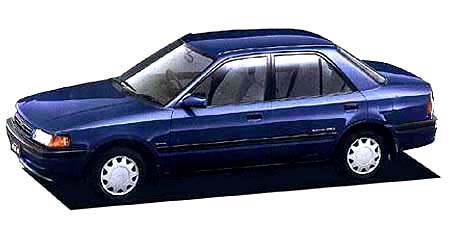

MAZDA FAMILIA CLAIR

MAZDA FAMILIA

BG7P · CLAIR

Description

Modification: CLAIR
Chassis ID: BG7P
Dates releasing: 1993.6~
Base price, ¥: X-BG7P
Body size: 4215x1675x1375
Interior (LxWxH): 1775x1385x1145
Wheelbase: 2500
Track f/r: 1430mm/1435mm
Full weight, kg: 990
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: ×
Power window: ×
Central switch: ×
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: PN
Type: water cooling inline 4 cylinder OHC (Diesel)
Bore x stroke, mm: 78.0x90.0
Engine size, cc: 1720
Compression ratio: 21.7
Fuel injection: 分配形燃料噴射ポンプ
Max power, hp/rpm: 58ps(43kW)/4700rpm
Max torque, Nm/rpm: 10.7kg m(104.9N m)/3000rpm
Supercharger: ×
Fuel tank, liters: 50 l
Fuel: Diesel
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type Independent suspension
Rear suspension: Strut type Independent suspension
Front brake: disk
Rear brake: Drum
Front wheel: 155/80R13 78S
Rear wheel: 155/80R13 78S
Min turn diameter, m: 4.8

Gearbox

Number of stages: 5MT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.416	1.842	1.290	0.972	0.731	—	—	—	3.214

Available colors

blackwhite / Other whitegreenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlueDark cyanPearlGold
