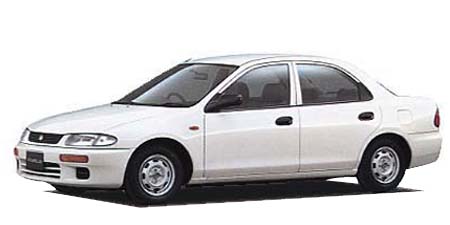

MAZDA FAMILIA RS

MAZDA FAMILIA

BHALP · RS

Description

Modification: RS
Chassis ID: BHALP
Dates releasing: 1994.6~
Base price, ¥: E-BHALP
Body size: 4335x1695x1420
Interior (LxWxH): 1825x1410x1185
Wheelbase: 2605
Track f/r: 1460mm/1460mm
Full weight, kg: 1090
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ◯
Front passenger air bag: ◯
Side airbags: ×
ABS: ◯
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ◯
Central switch: ◯
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: Z5-DE
Type: water cooling inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 75.3x83.6
Engine size, cc: 1489
Compression ratio: 9.4
Fuel injection: EGI(電子制御燃料噴射装置)
Max power, hp/rpm: 97ps(71kW)/5500rpm
Max torque, Nm/rpm: 13.5kg m(132.4N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 50 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 7

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson
Rear suspension: Strut type
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 175/70R13 82S
Rear wheel: 175/70R13 82S
Min turn diameter, m: 5.1

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ◯
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.800	1.540	1.000	0.700	—	—	—	—	2.333

Available colors

blackwhite / Other whitegreen / Other greenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearlGold / Other Gold
