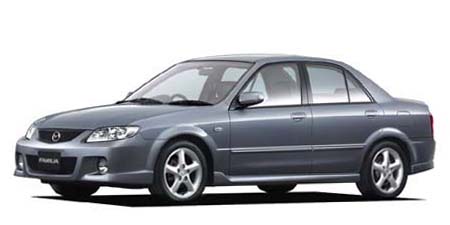

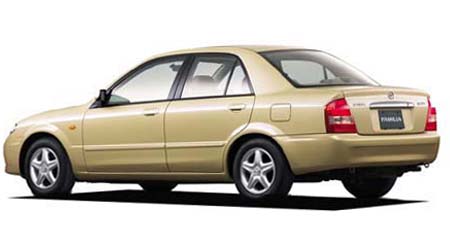

MAZDA FAMILIA SPORT20

MAZDA FAMILIA

BJFP · SPORT20

Description

Modification: SPORT20
Chassis ID: BJFP
Dates releasing: 2001.12~
Base price, ¥: GF-BJFP
Body size: 4380x1695x1410
Interior (LxWxH): 1825x1440x1165
Wheelbase: 2610
Track f/r: 1465mm/1470mm
Full weight, kg: 1170
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ×
Additional equipment: ×

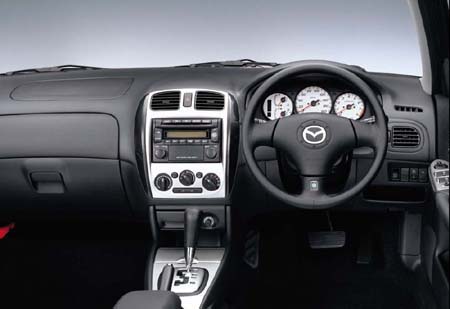

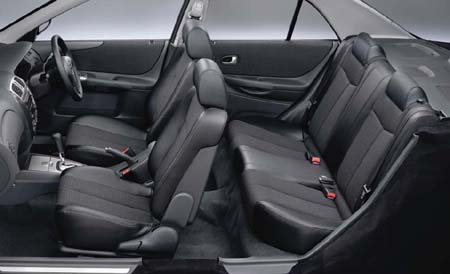

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×

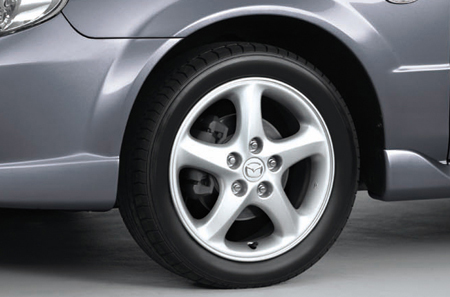

Alloy wheels: 16 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: FS-ZE
Type: water cooling inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 83.0x92.0
Engine size, cc: 1991
Compression ratio: 10.4
Fuel injection: EGI(電子制御燃料噴射装置)
Max power, hp/rpm: 170ps(125kW)/6800rpm
Max torque, Nm/rpm: 18.4kg m(180N m)/5000rpm
Supercharger: ×
Fuel tank, liters: 55 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 8.1

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson
Rear suspension: Strut type
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 195/50R16 84V
Rear wheel: 195/50R16 84V
Min turn diameter, m: 5.2

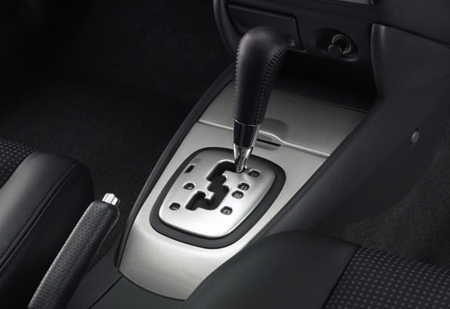

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

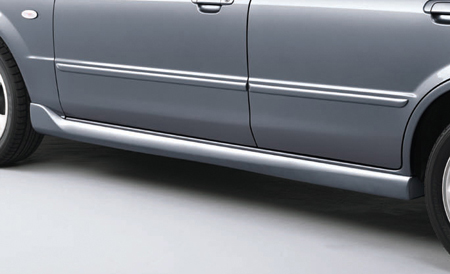

Exterior equipment

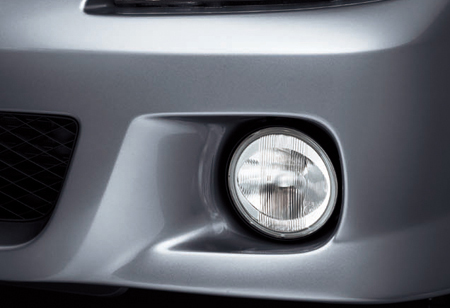

Front fog lights: ✓
Rear fog lights: ×

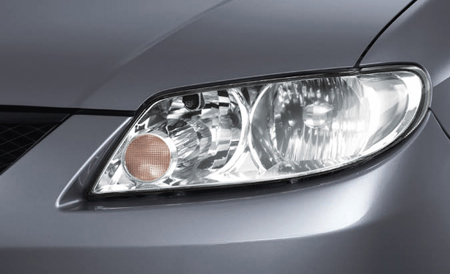

Xenon: ✓
Extra front lights: ×

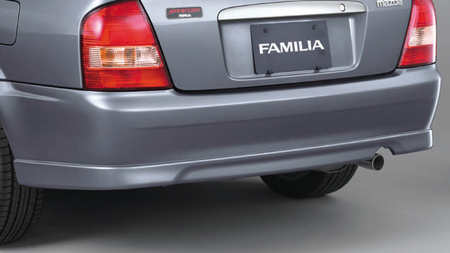

Spoilers (f / r): ✓ / ×
Wiper: ×

Navigation & sound

Navigation: ◯
Navigation device: DVD
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.816	1.497	1.000	0.725	—	—	—	—	2.648

Available colors

blackwhite / Pure WhitegreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearlGold
